BL600RC

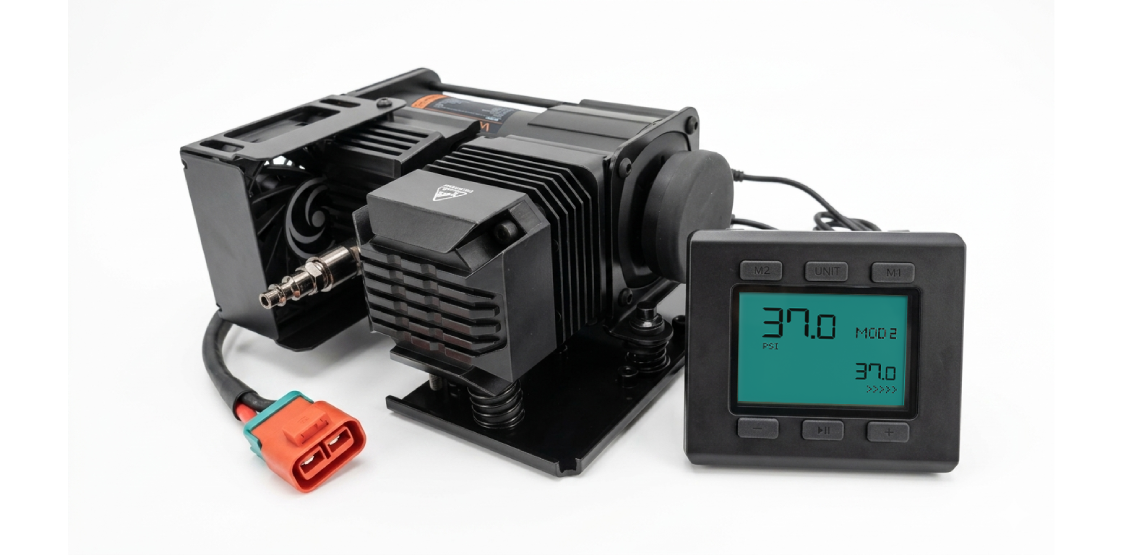

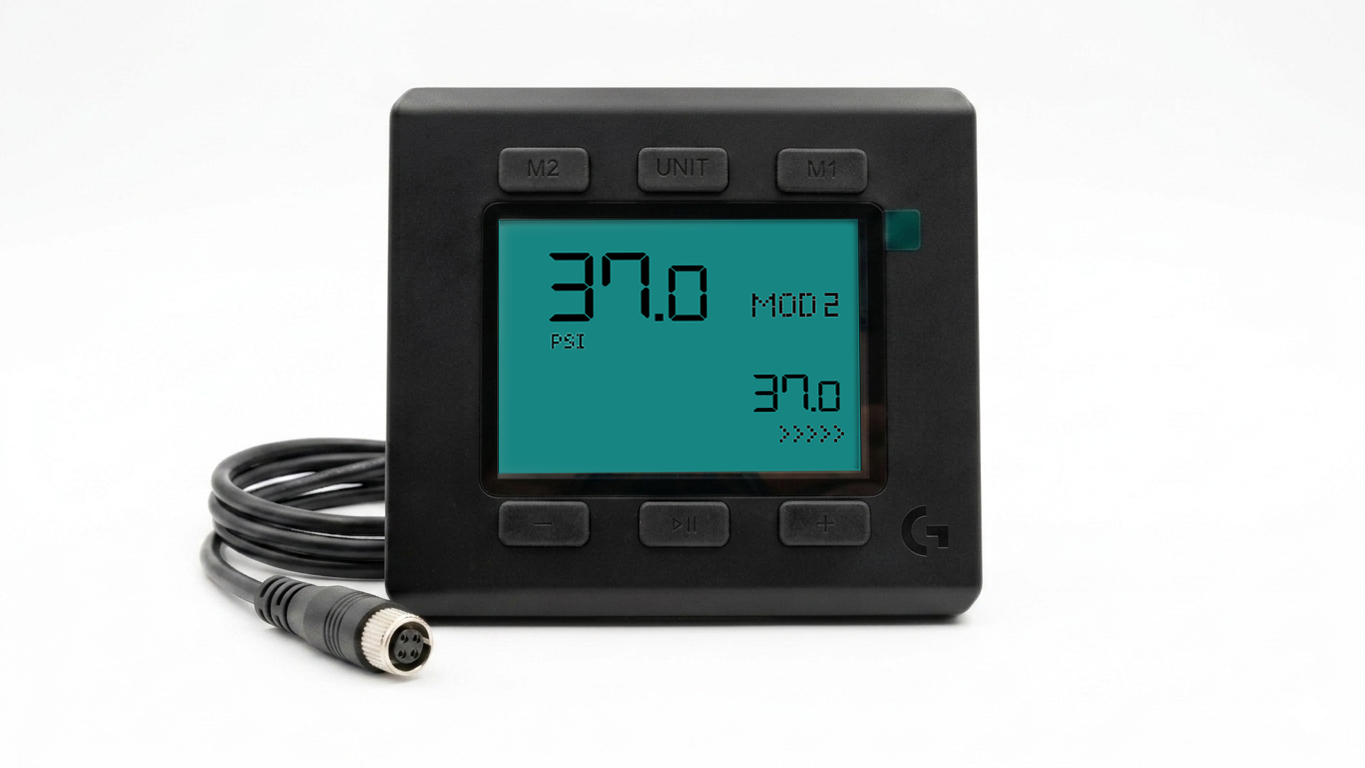

BL600RC High-Performance Mounted Brushless Air Compressor 1. Ultra-High Airflow Output: Delivers a maximum airflow of 195 L/Min (6.89 CFM), providing an exceptionally fast inflation experience. 2. High-Performance Brushless Motor: Equipped with a DC brushless motor for superior inflation efficiency and maintenance-free operation, ensuring a longer service life. 3. Exclusive Cooling & Ventilation Design: Features a multi-layer filtration system and a turbine cooling fan to significantly enhance heat dissipation and maintain operational stability. 4. Comprehensive Safety Protection: Includes built-in motor overheat protection, over-voltage protection, constant-speed drive, and soft-start functionality to ensure safe and reliable operation. 5. Stable & Precise Performance: Capable of precise pressure relief with an accuracy of ±1 PSI, ensuring smooth and consistent performance. 6. Superior Protection Rating: Features an IP65 dust and water resistance rating (Note: applies to static, non-operating states), providing excellent all-around protection. 7. Smart Control Interface: Equipped with a digital pressure gauge that supports two pressure memory modes (M1/M2) for easy and intuitive operation. 8. Ideal for Off-Road & Overlanding: Designed as a complete, robust mounting solution specifically engineered for off-roading and long-distance travel.

Specifications

Specifications

Parameters

Product Name

Brushless Max. Air Compressor

Model

BL600RC

Rated Voltage/Max.Current

DC-12V / 65A

Operation duration

100% Duty Cycle

Max.pressure

150PSI/10.3BAR/(10.5kg/cm2)

195x70/R14 Tire Inflation Rate

37Sec.(0~30PSI)

265x60/R18 Tire Inflation Rate

1Min.35Sec.(0~30PSI)

33"x12.5"/R15 Tire Inflation Rate

2Min.32Sec.(0~30PSI)

Dimension (LxWxH)

263×201×130 mm

Weight

7.76 kg

Power Cord

1.5M/5M(Option)

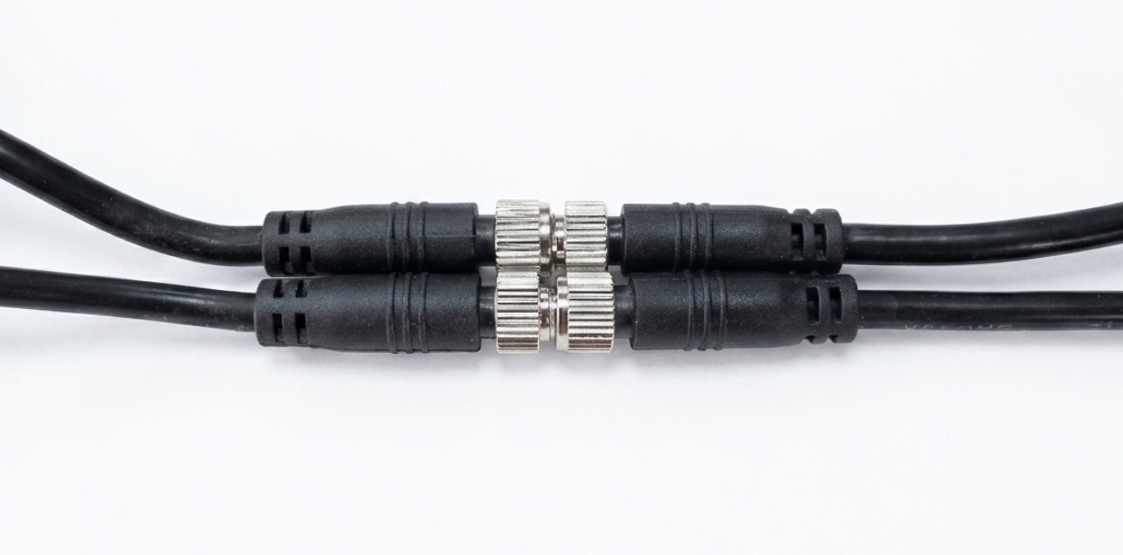

Pressure Gauge Wire Length

2M

Waterproof rating

IP65 (Under static, non-running conditions)

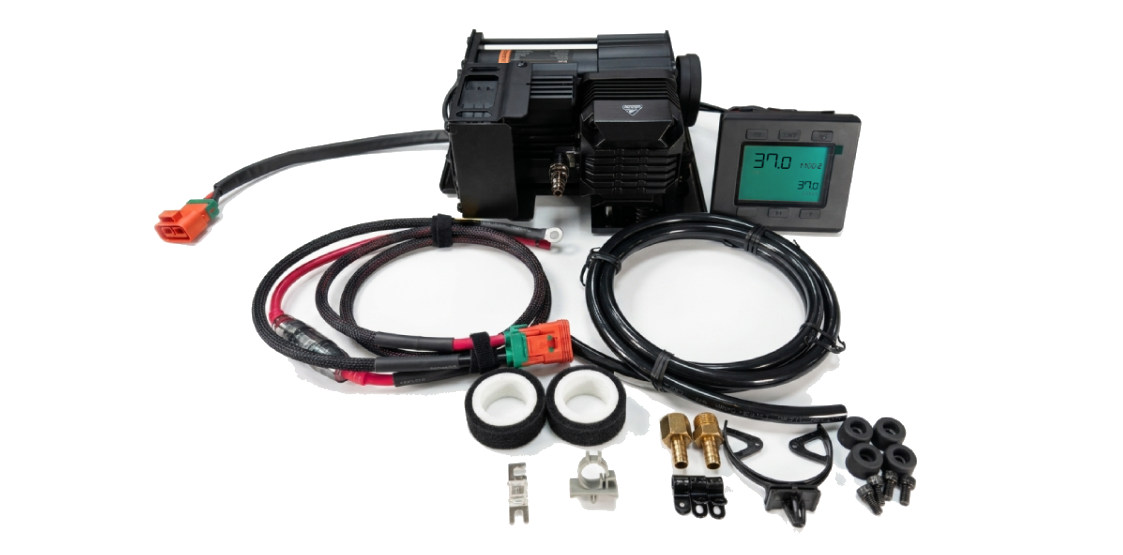

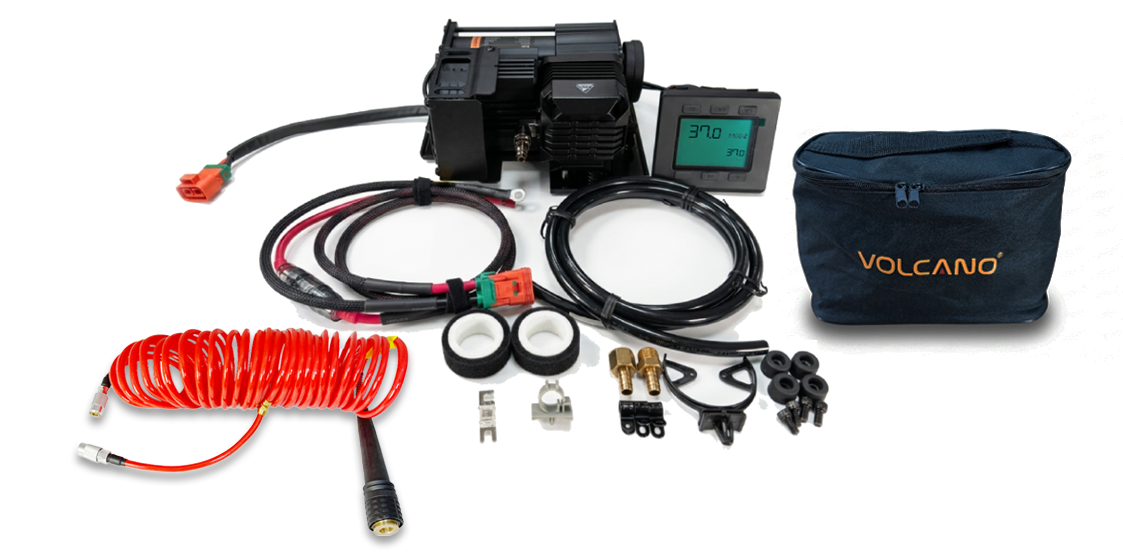

Accessories

Accessories

Quantity

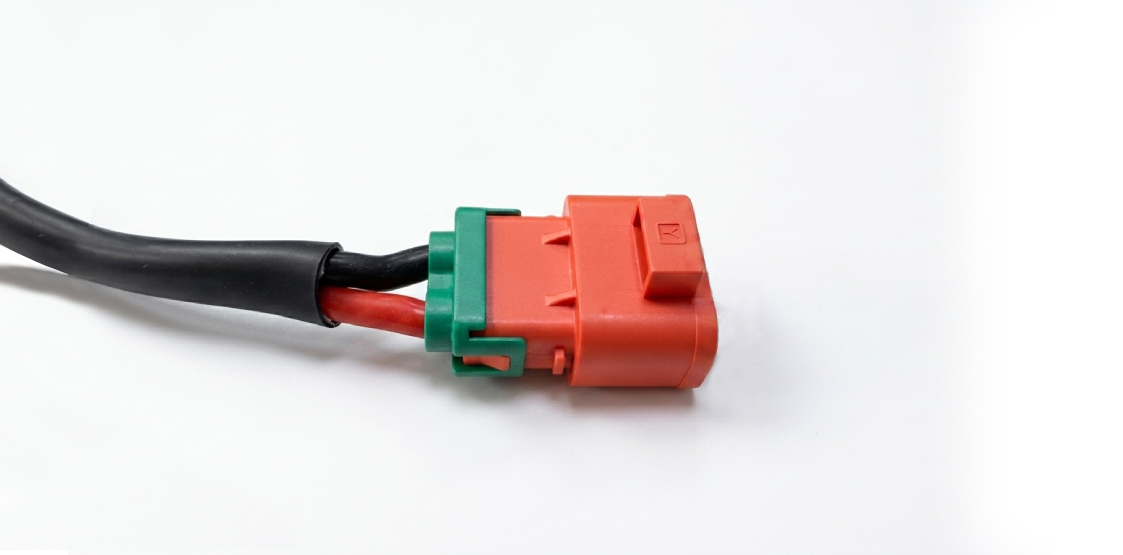

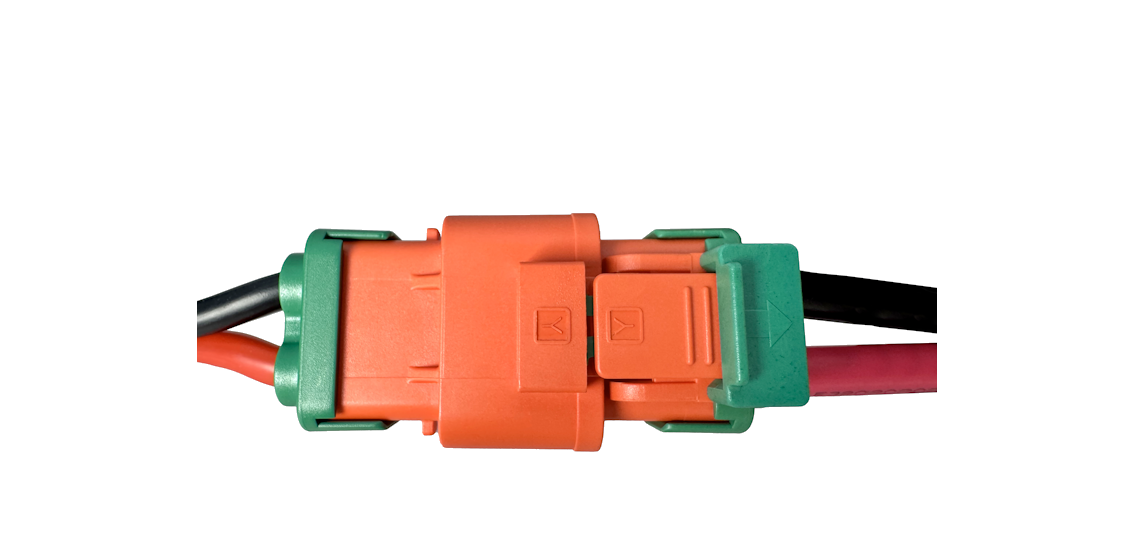

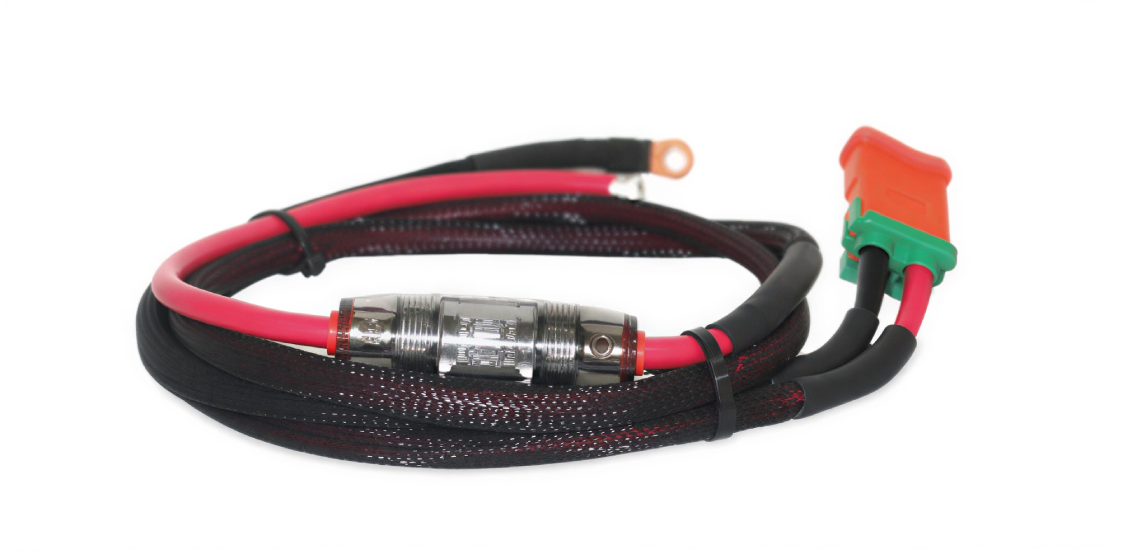

Power Cord(1.5M)

1 PCS

Filter

1 PCS

Filter elements

2 PCS

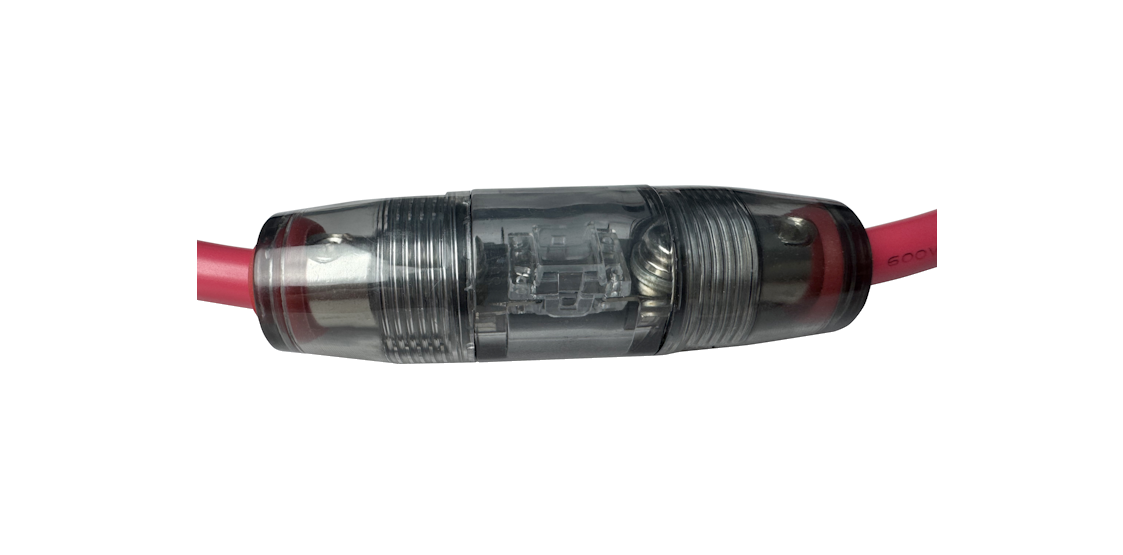

ANL 80A Fuse

2 PCS

Air intake pipe connector

1+1 PCS

Air Intake Hose

1 PCS

Air hose clamp, Screw

3+1 PCS

Foot pad, Screw

4 PCS





Packing Information

Packing items

Q'ty/Model

Standard packing

1PCS/CTN

Net weight/Carton

7.76 Kg

Gross weight/Carton

9.42Kg

Carton size

40.5 x 29.3 x 23.2cm

20' Container

1,040 PCS

40' Container

2,080 PCS

40' High Cube Container

2,288 PCS
