R50P

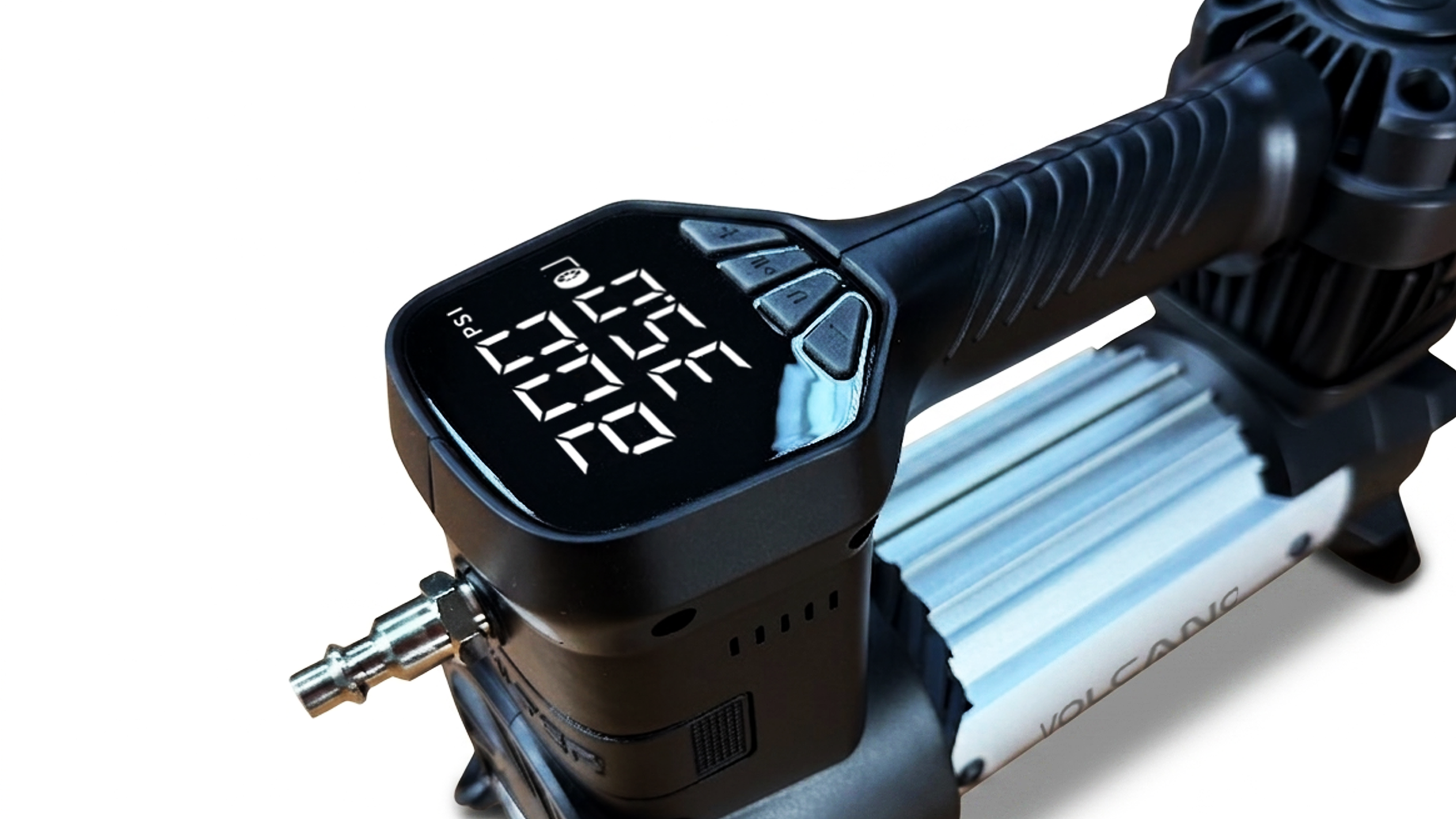

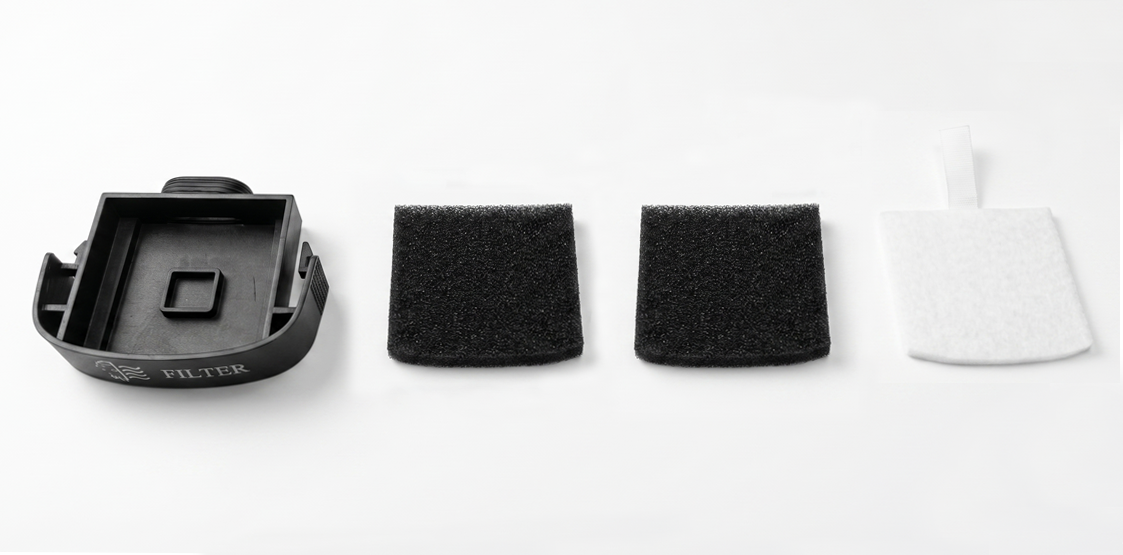

The VOLCANO R50P is designed for drivers who demand both high-performance and exceptional durability, perfectly integrating powerful inflation with intelligent control for daily commutes and outdoor adventures. With its outstanding stability and professional engineering, the R50P offers the following core advantages: 1.Patented Rear Motor Air Intake System: Innovative intake technology keeps the motor at a low temperature during operation, supporting long periods of continuous inflation to meet high-intensity demands. 2.Built-in Intelligent Digital Pressure Gauge: Features preset value storage and an auto-stop function, ensuring precise, intuitive, and efficient inflation. 3.Three-Layer Filter System: Effectively blocks dust and moisture from the environment, protecting internal precision components and significantly enhancing durability in harsh conditions. 4.Multiple Selectable Pressure Units: Offers three pressure units with easy-to-use preset editing and saving, providing flexible and convenient operation. 5.Integrated Multi-function LED Lighting: The built-in LED light provides safety and convenience for emergency inflation tasks at night or in low-light conditions. 6.Powerful Fast Inflation: Features an inflation flow rate of up to 70LPM / 2.47CFM (@0PSI), delivering exceptional performance for various large tires. The R50P offers the perfect balance of efficiency and reliability, providing you with the most dependable professional inflation experience.

Specification

Specifications

Details

Product Name

Intelligent Heavy Duty Tire Inflator

Model

R50P

Rated Voltage/Max.Current

DC-12V / 28A

Operation duration

Continuous

Max.pressure

120PSI / 8.27BAR / (8.43kg/cm²)

195x70xR14Tire Inflation Rate

1Min.15Sec.(0~30PSI)

Dimension (LxWxH)

298 x 117 x 187 (mm)

Weight

3.25Kg

Power Cord/Air Hose length

2.54M / 7.62M

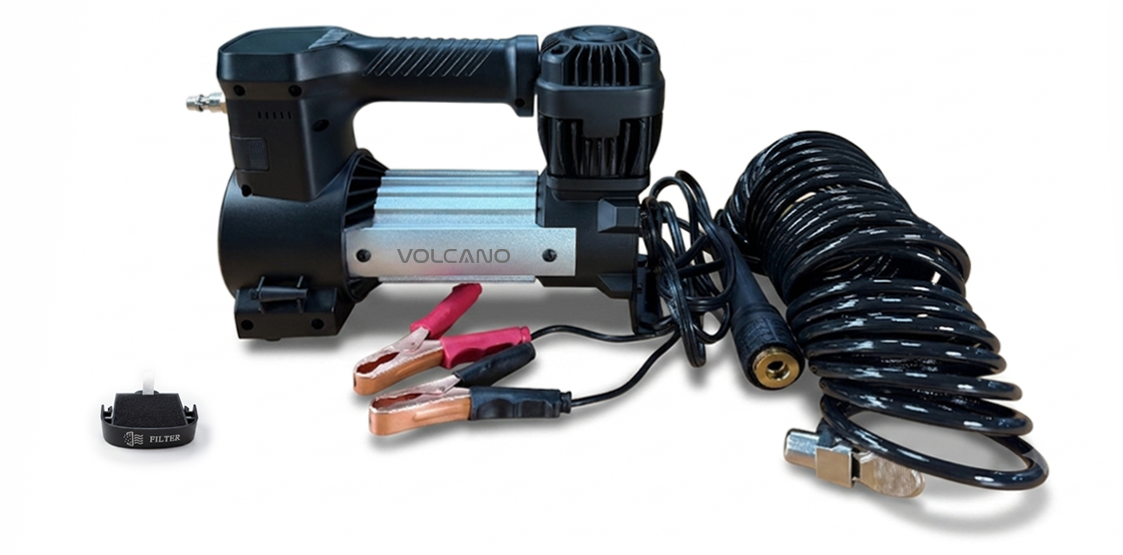

Accessories

Accessories

Quantity

Long Plastic Nozzle

1PCS

Inflation Needle

1PCS

Adapter

1PCS

Performance Comparison Table

Performance Comparison Table

R50P

Tire Inflation Rate(Tire Size: 195/70R14,0-30PSI)

1Min.15Sec.

Operation Duration

(@30PSI&23℃)

Continuous

FlowRate@0PSI

70LPM

FlowRate@30PSI

52LPM

Packing Information

Packing items

Q'ty/Model

Color Boxsize

 34.0x24.0x23.5(cm)

Carton size

50.0x35.5x26.0(cm)

Standard packing

2PCS/CTN

Net weight/Carton

7.57Kg

Gross weight/Carto

10.24Kg

20ft Palletized Container

960PCS

20ft container loose loaded

1,188PCS
