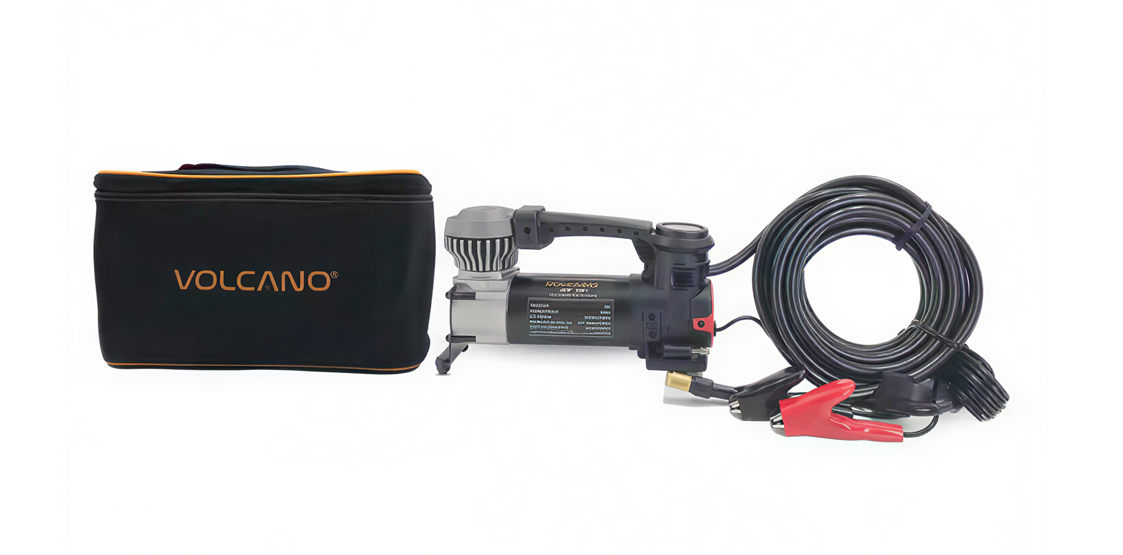

6309

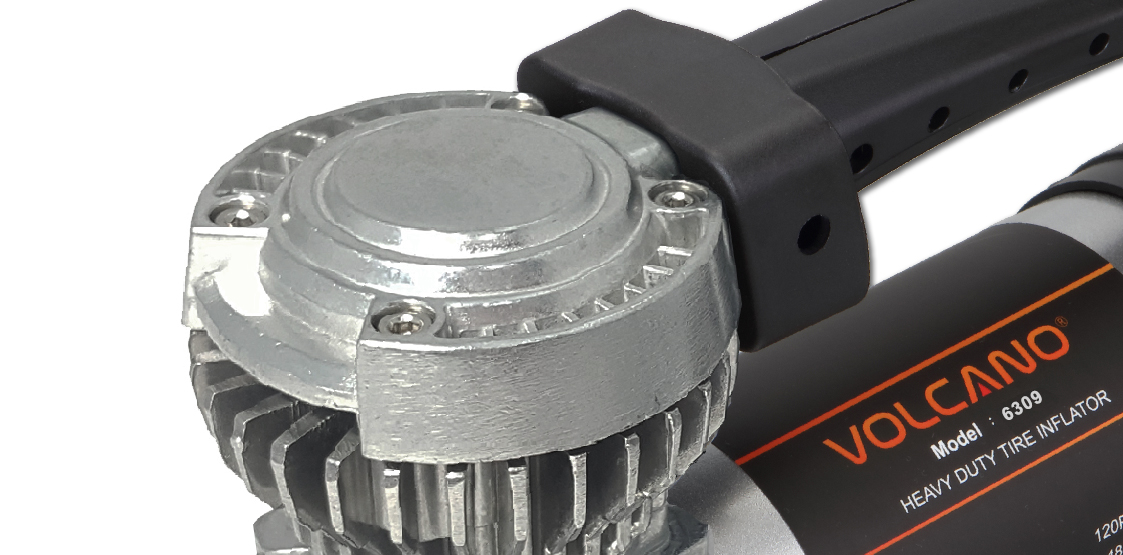

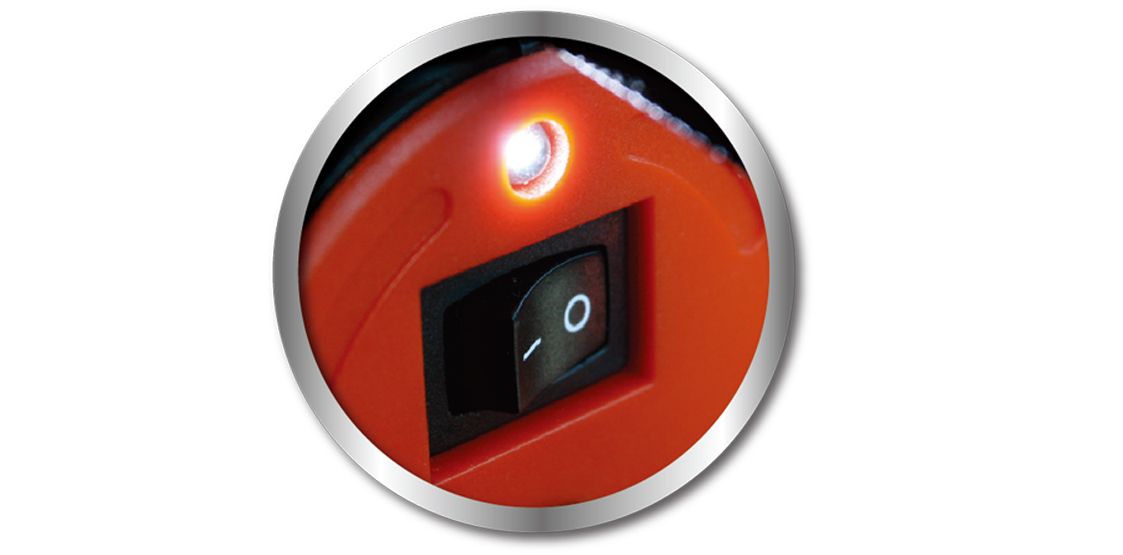

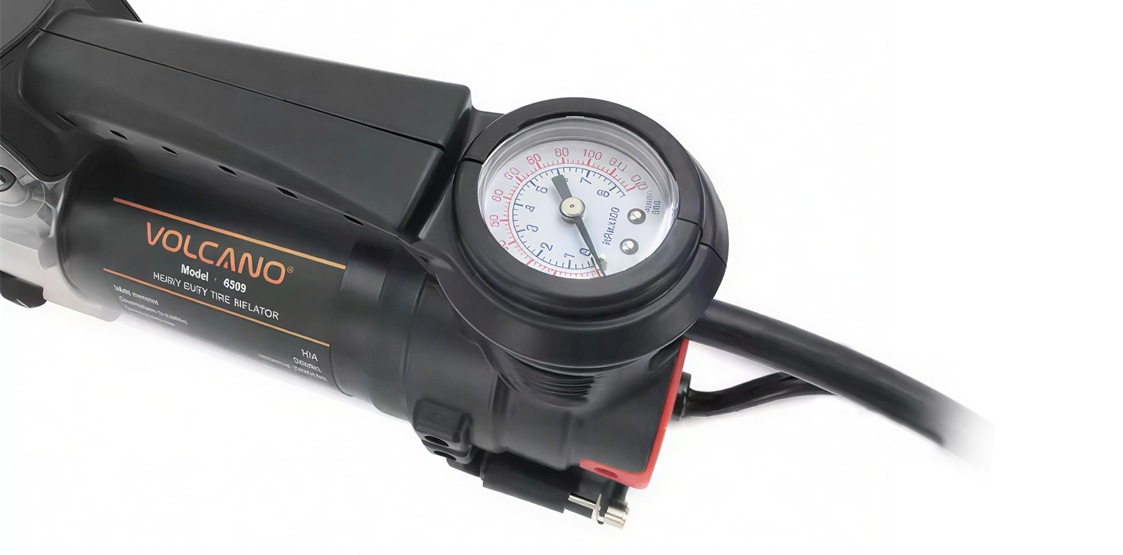

6309 is the 3rd SUV off-road air compressor / tire inflator that insulated battery clamps with 20A inline fuse. With LED light ,convenient for working at night. High performance PTFE piston ring. Anodized aluminum alloy cylinder. With automatic reset thermal overload protector. Easy to read pressure gauge
Unboxing and Operating
| Specifications | Features |
| Rated voltage: DC 12V | Battery clamp with fuse |
| Max. current: 19 A | Anodized aluminum alloy cylinder |
| Operation duration: 25Min. | High performance heat sink |
| Max. pressure: 120PSI (8.27BAR) | High performance PTFE piston ring |
| 195/70R14 tire inflation rate: 1Min.48Sec (0～30PSI) | Thermal protector |
| Dimension(L*W*H): 250*80.5*142.8mm | LED lighting |
| Power cord / Air hose length: 2.5M/3.66M | ---- |
| Accessories | Quantity |
| Inflation Needle | 1 PC |
| Long Plastic Nozzle | 1 PC |
| Short Plastic Nozzle | 1 PC |
| Packing items | Q'ty / Model |
| Standard packing | 4 PCS/CTN |
| Gross weignt/carton | 12.0 kg |
| Carton size | 33*28*37.5cm |
| 20' Container | 3,264 PCS |
