6314

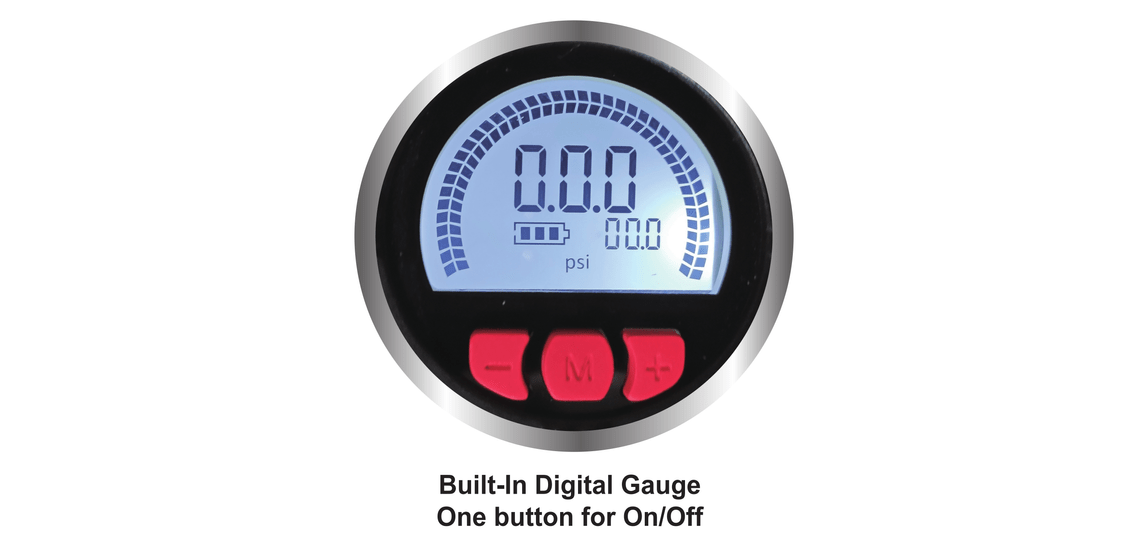

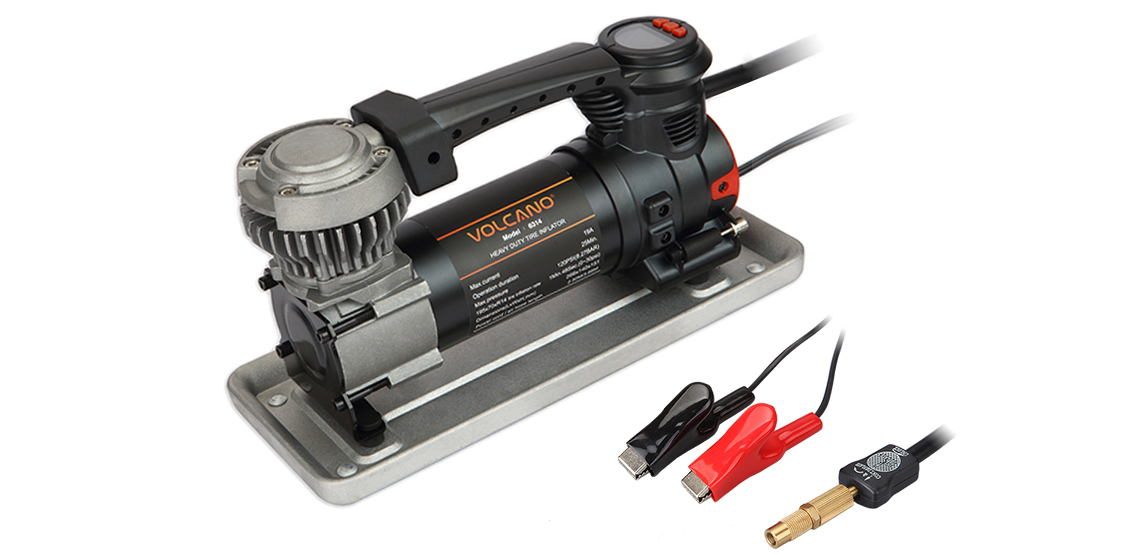

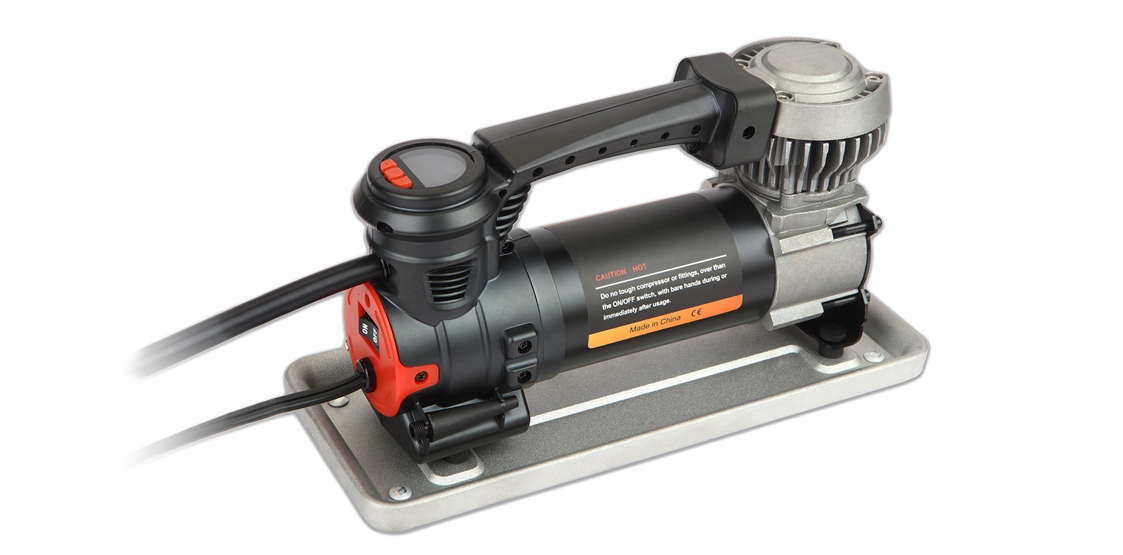

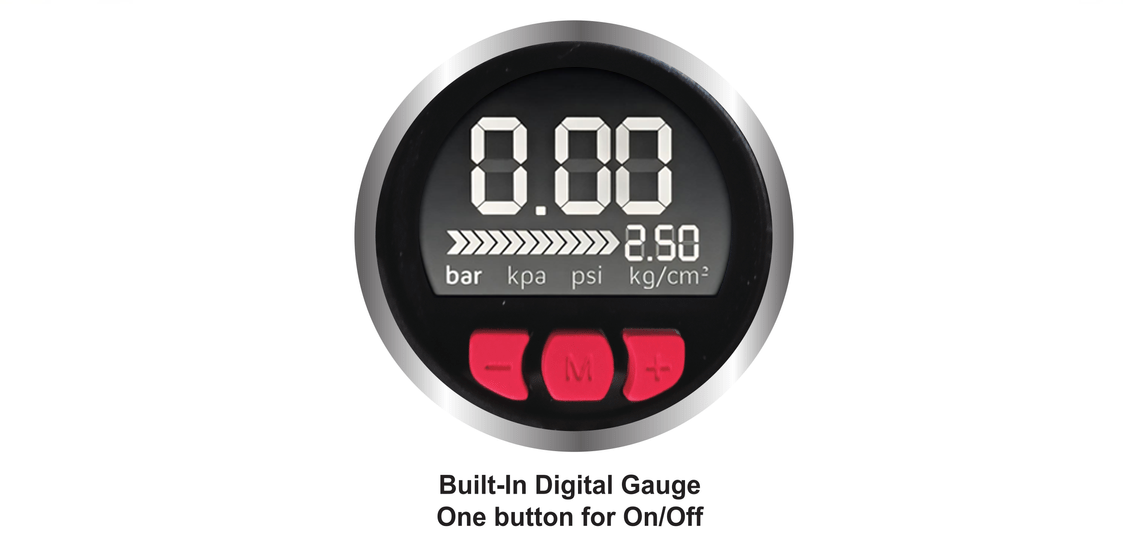

6314 is the 3rd SUV off-road air compressor / tire inflator. It has: 1. Digital pressure gauge, which is convenient to operate and setting. 2. With 20A fuse battery clamp for safety. 3. Anodized aluminum alloy cylinders and high performance heat sink enhance product stability. 4. High performance PTFE piston ring increases product reliability. 5. LED lighting is convenient for night work. Suitable for 4X4, SUV and other large off-road vehicles!

6314
Performance data

Specification
Specifications Features

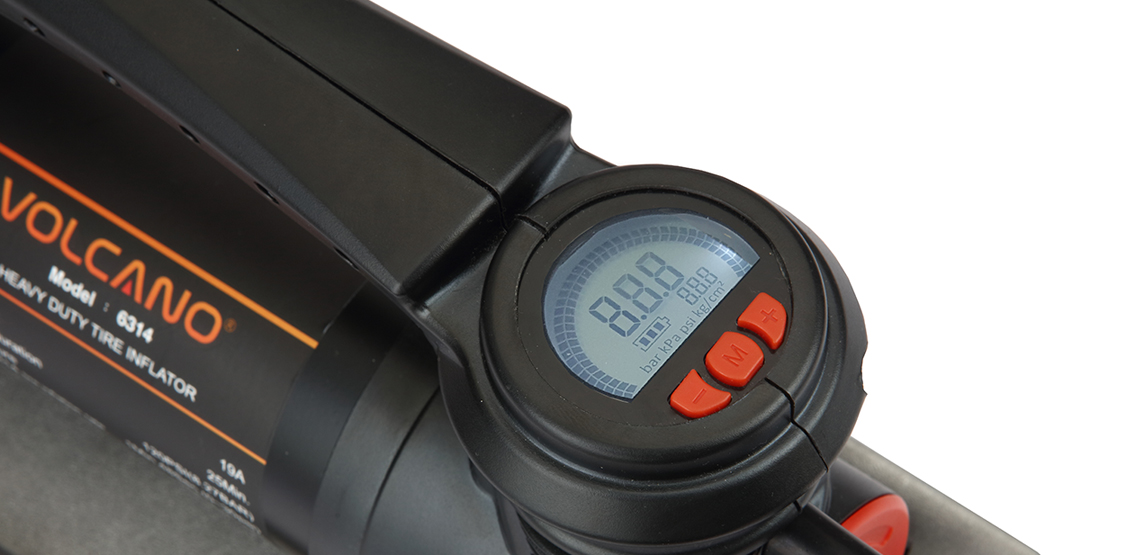

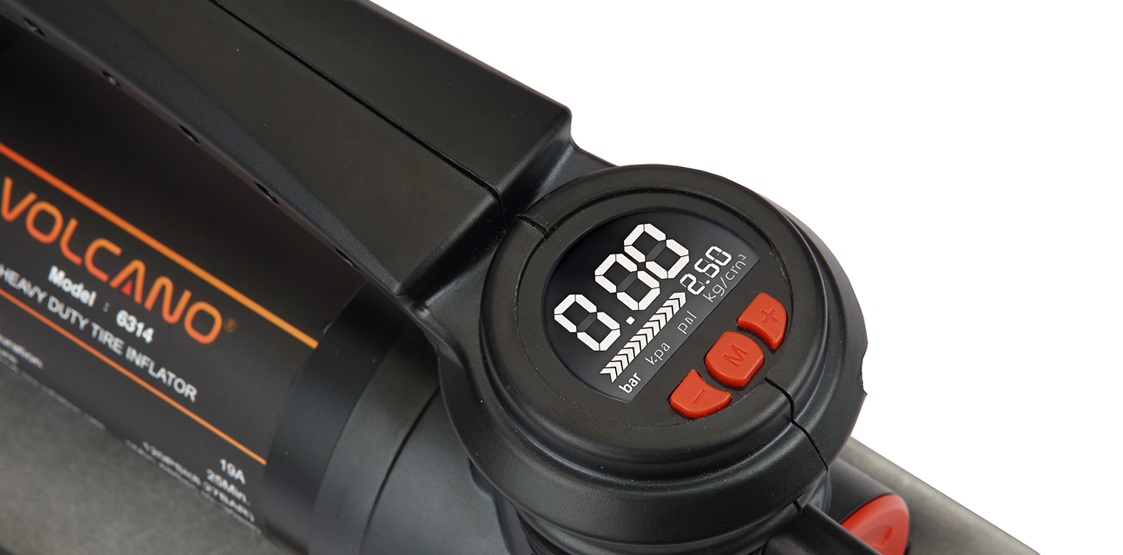

Rated voltage: DC 12V Digital pressure gauge
Max. current: 19 A Battery clamp with fuse

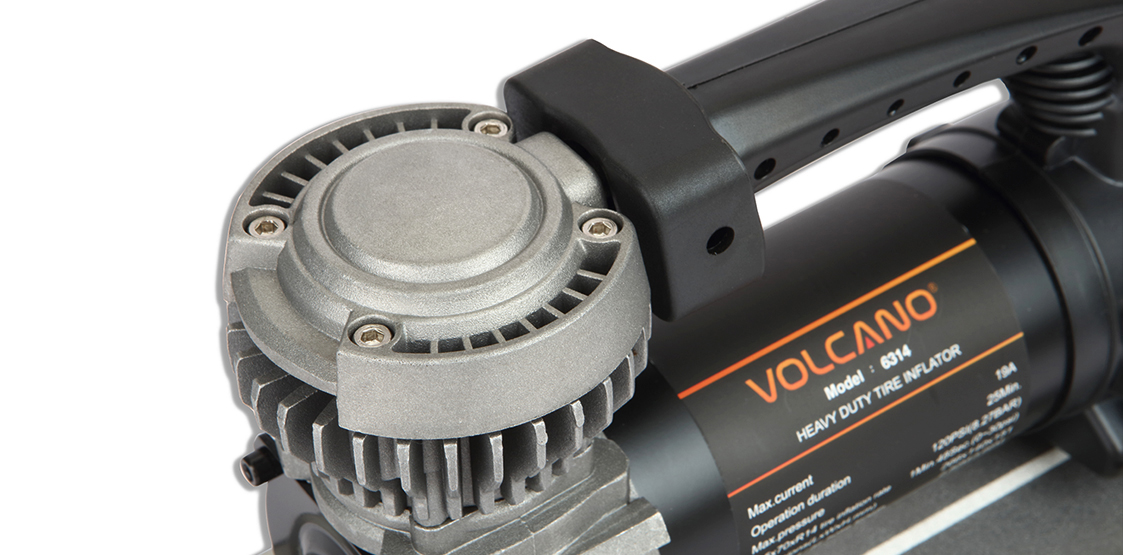

Operation duration: 25Min. Anodized aluminum alloy cylinder
Max. pressure: 120PSI (8.27BAR) High performance heat sink
195/70R14 tire inflation rate: 1Min.48Sec (0～30PSI) High performance PTFE piston ring
Dimension(L*W*H): 266*140*151mm LED lighting
Power cord / Air hose length: 2.5M/3.66M ----

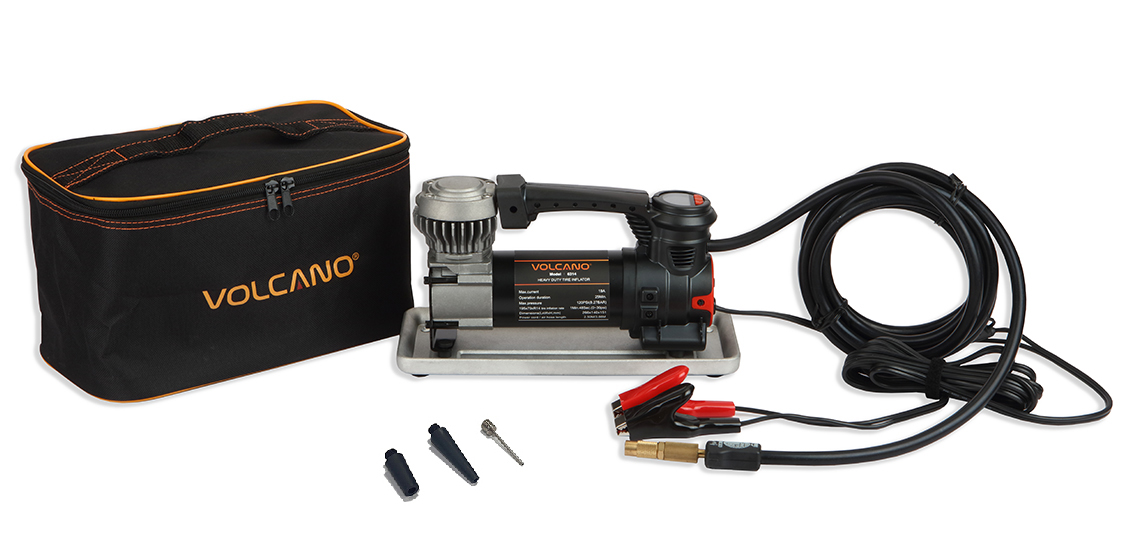

Accessories
Accessories Quantity
Inflation Needle 1 PC
Long Plastic Nozzle 1 PC
Short Plastic Nozzle 1 PC
Packing Information
Packing items Q'ty / Model
Standard packing 6 PCS/CTN
Net weight/catron 15.0 kg
Gross weignt/carton 17.3 kg
Carton size 49.2*28.1*37.5cm
20' Container 3,312 PCS
