686

686 is the air compressor / tire inflator that dual battery clamps with 40-amp inline fuse ,safe and reliable. High performance PTFE piston ring. Anodized aluminum alloy cylinder. With automatic reset thermal overload protector. Equipped with heat sink. Stainless steel flapper valve

686

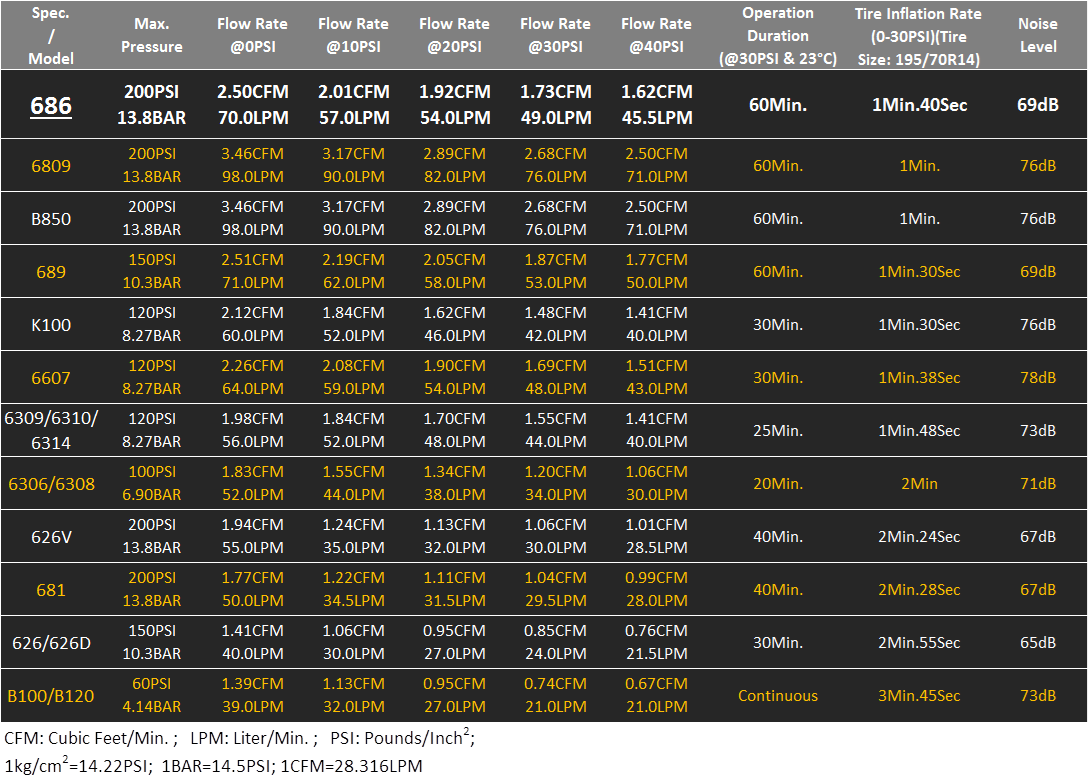

Performance data

Specification
Specifications Features
Rated Voltage: DC 12V Dual battery clamp
Max. current: 30 A Anodized aluminum alloy cylinder
Operation duration: 60Min. High performance heat sink
Max. pressure: 200PSI (13.8BAR)
Quick release type inflation joint
195/70R14 tire inflation rate: 1Min.40Sec   (0～30PSI) ----
Dimension(L*W*H): 255*100*220mm ----
Power cord/Air hose length: 5.00M/0.92M Aluminum alloy tray



Accessories
Accessories Quantity
Inflation Needle 1 PC
Long Plastic Nozzle 1 PC
Short Plastic Nozzle 1 PC



Packing Information
Packing items Q'ty / Model
Standard packing 4 PCS/CTN
Gross weight/carton 15.2 kg
Carton size 64*32.8*27cm
20' Container 1,920 PCS
