689

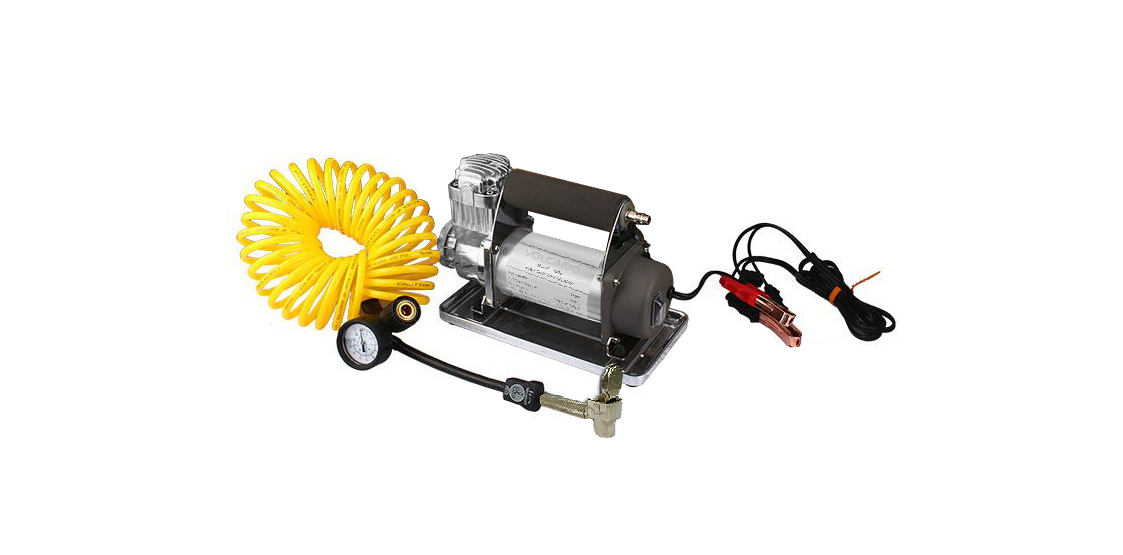

689 is the air compressor / tire inflator that dual battery clamps with 40-amp inline fuse ,safe and reliable. High performance PTFE piston ring. Anodized aluminum alloy cylinder . With automatic reset thermal overload protector. 25 ft versatile extension coil hose with in-line pressure gauge for inflating and deflating. With aluminum alloy sand tray, exclusive isolation system of vibration, sand and snow.

689

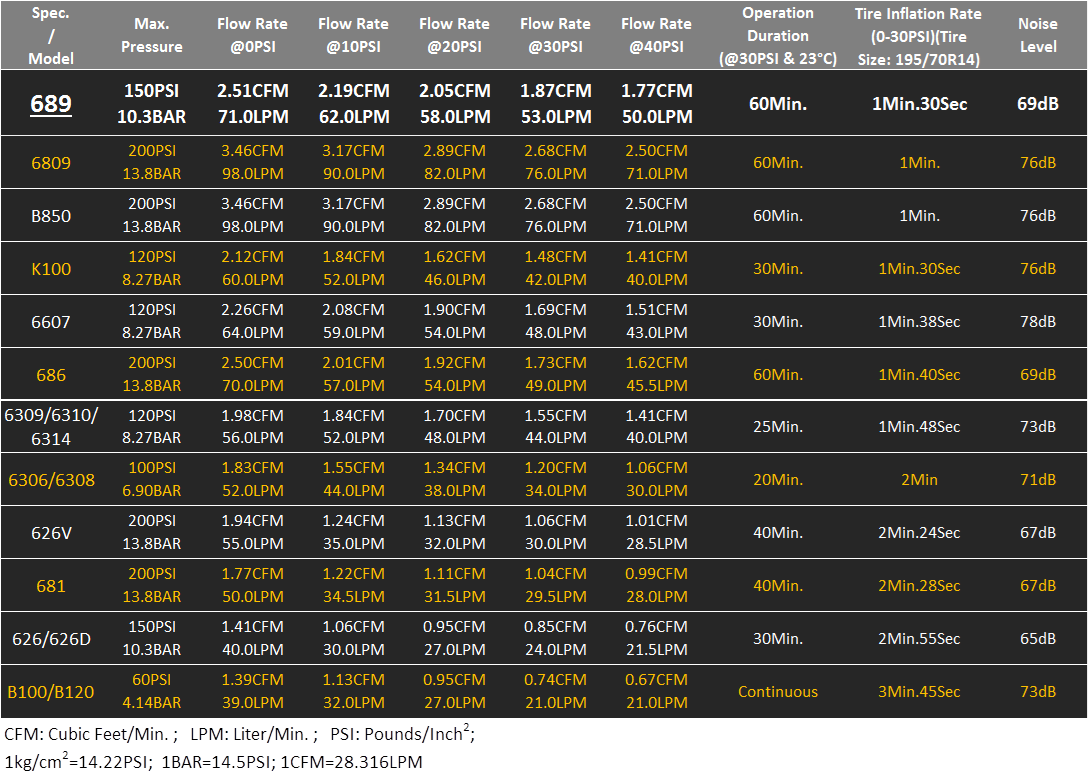

Performance data

Specification
Specifications Features
Rated Voltage: DC 12V Dual battery clamp
Max. current: 30 A Air filter
Operation duration: 60Min. Anodized aluminum alloy cylinder
Max. pressure: 150PSI (10.3BAR) High performance heat sink
195/70R14 tire inflation rate: 1Min.30Sec   (0～30PSI) Quick-release air hose (with pressure gauge)
Dimension(L*W*H): 285.75*101.6*177.8mm High performance PTFE piston ring
Power cord/Air hose length: 2.54M/7.62M Aluminum alloy tray



Accessories
Accessories Quantity
Inflation Needle 1 PC
Long Plastic Nozzle 1 PC
Short Plastic Nozzle 1 PC
Air filter 1 PC
Air hose 1 PC



Packing Information
Packing items Q'ty / Model
Standard packing 2 PCS/CTN
Net weight/carton 10.4 kg
Gross weight/carton 13.3 kg
Carton size 66*35*27.4cm
20' Container 960 PCS
40' Container 1,984 PCS
