B850

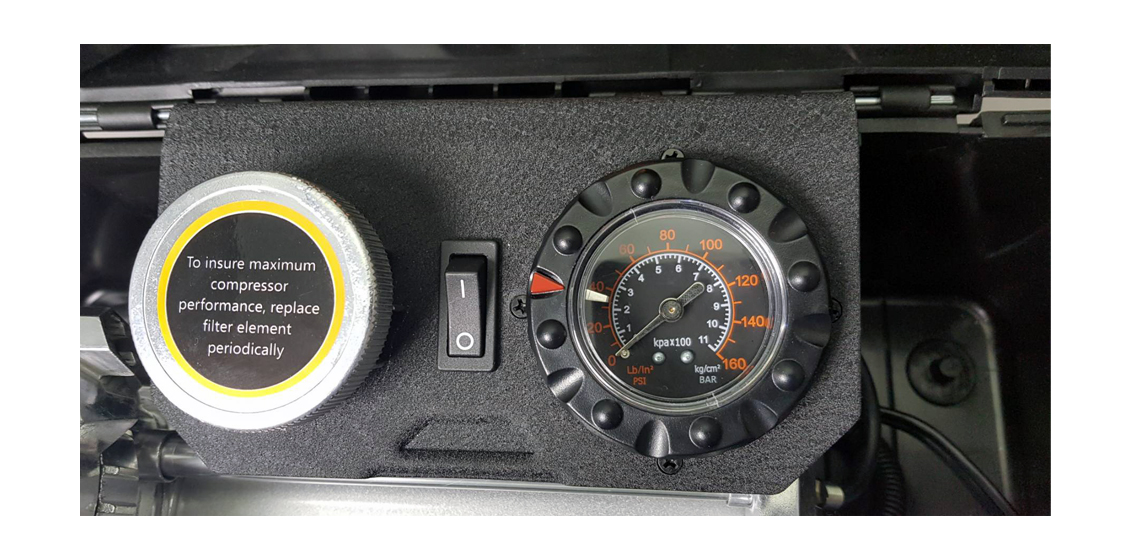

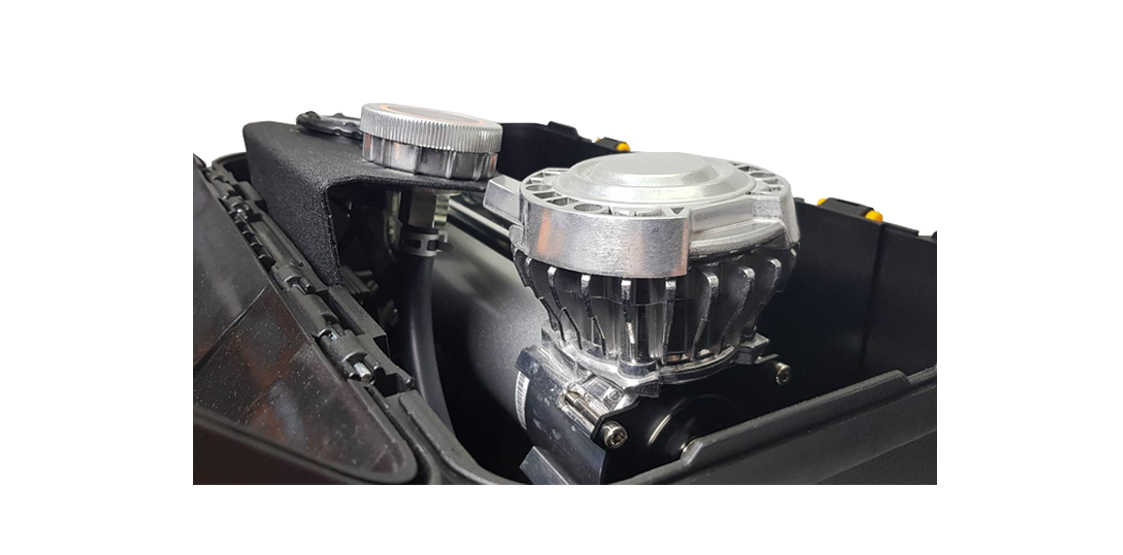

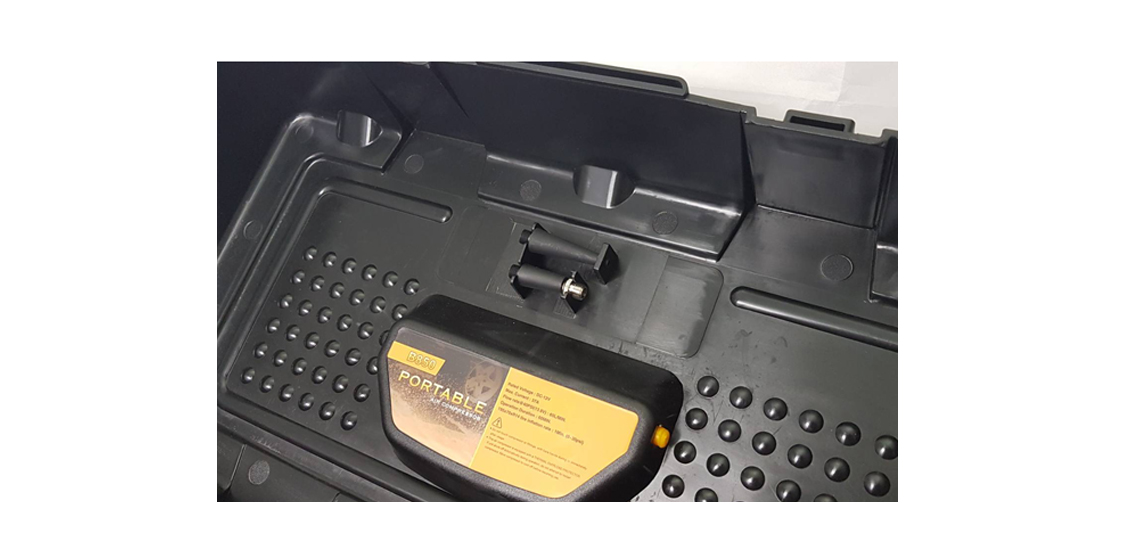

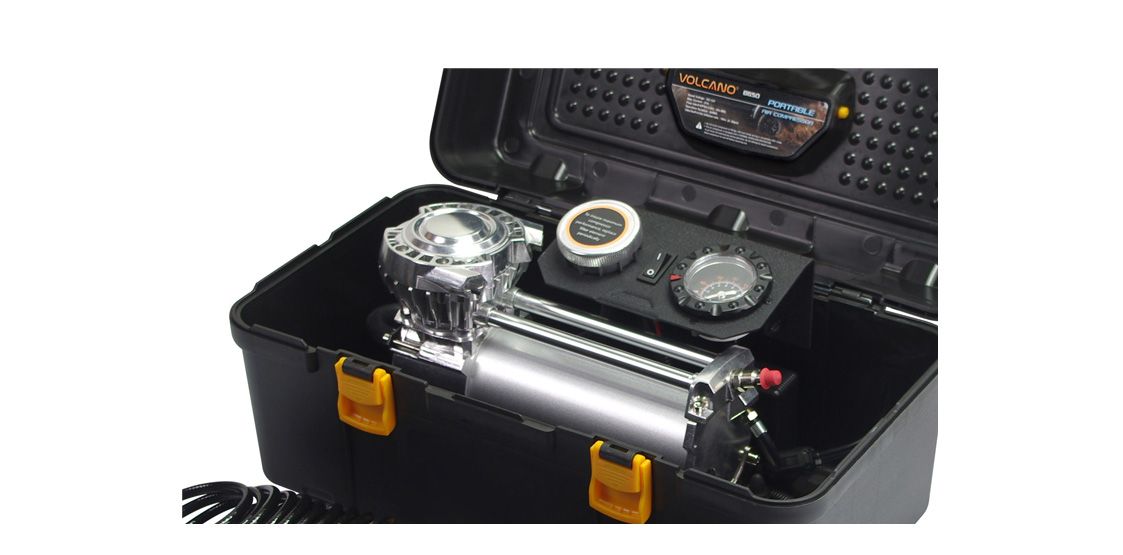

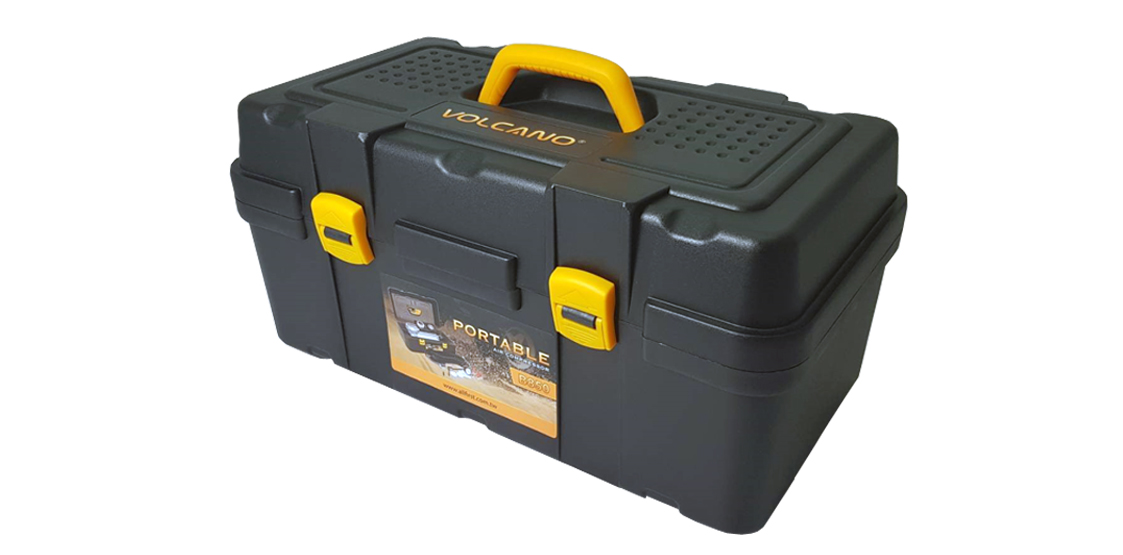

B850 id the air compressor / tire inflator that mounted in a durable case offering easy carrying and storage. With LED backlight intelligent Auto-stop analog pressure gauge. Dual battery clamps with in-line fuse. 25 ft versatile extension coil hose with in-line pressure gauge that inflating and deflating device. High performance PTFE piston ring. Anodized aluminum alloy cylinder. With automatic reset thermal overload protector.

B850

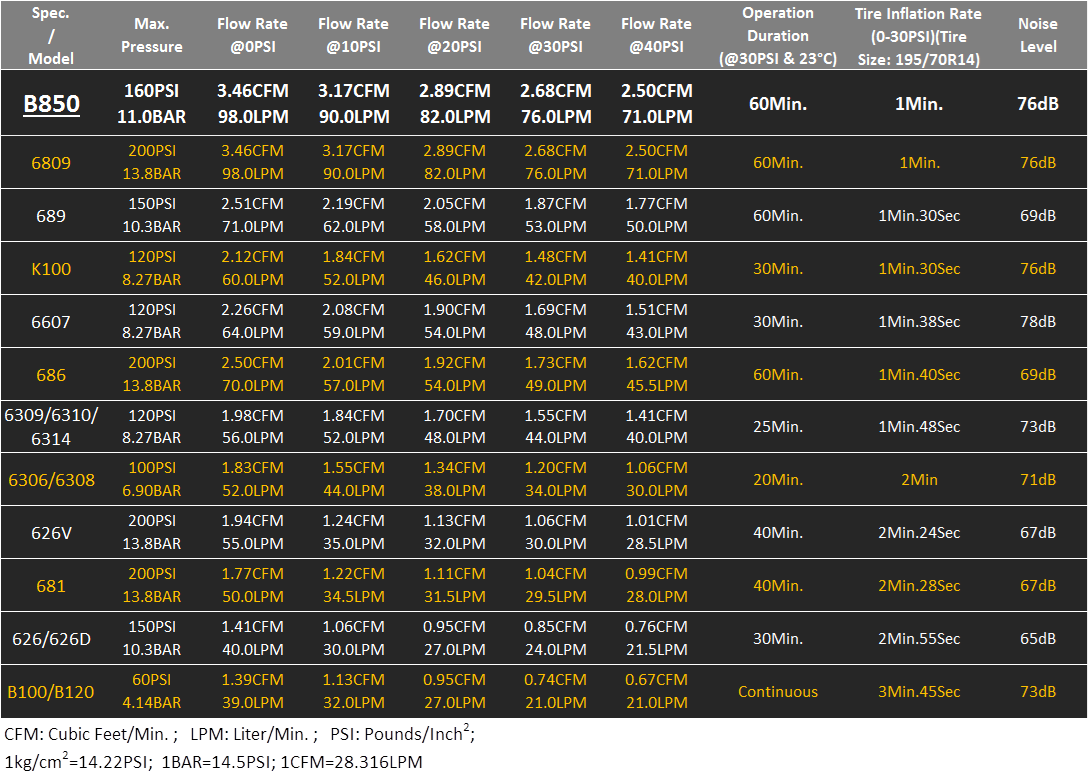

Performance data

Specification
Specifications Features
Rated Voltage: DC 12V / 24V Dual battery clamp
DC 12V Max. current: 35 A Air filter
DC 24V Max. current: 19 A Anodized aluminum alloy cylinder
Operation duration: 60Min. High performance heat sink
Max. pressure: 160PSI (11.03BAR) Quick-release air hose (with pressure gauge)
195/70R14 tire inflation rate: 1Min. (0～30PSI) High performance PTFE piston ring
Dimension(L*W*H): 445*245*240mm Thermal protector
Power cord/Air hose length: 2.54M/7.62M Integrated portable chassis



Accessories
Accessories Quantity
Inflation Needle 1 PC
Long Plastic Nozzle 1 PC
Short Plastic Nozzle 1 PC
Air hose 1 PC



Packing Information
Packing items Q'ty / Model
Standard packing 2 PCS/CTN
Gross weight/carton 16.5 kg
Carton size 53*46.2*25cm
20' Container 864 PCS
40' Container 1,800 PCS
