BL600C

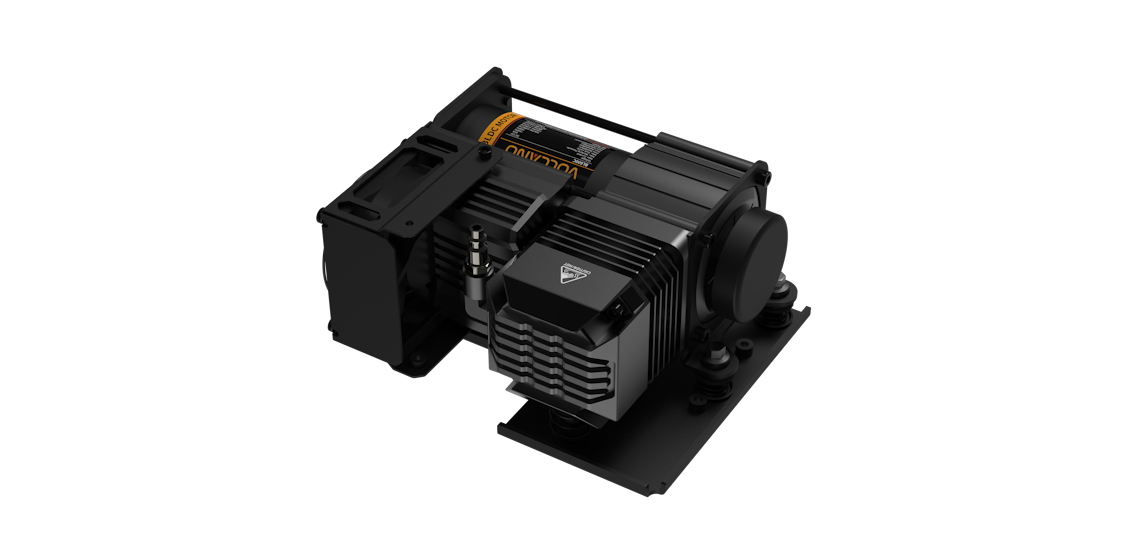

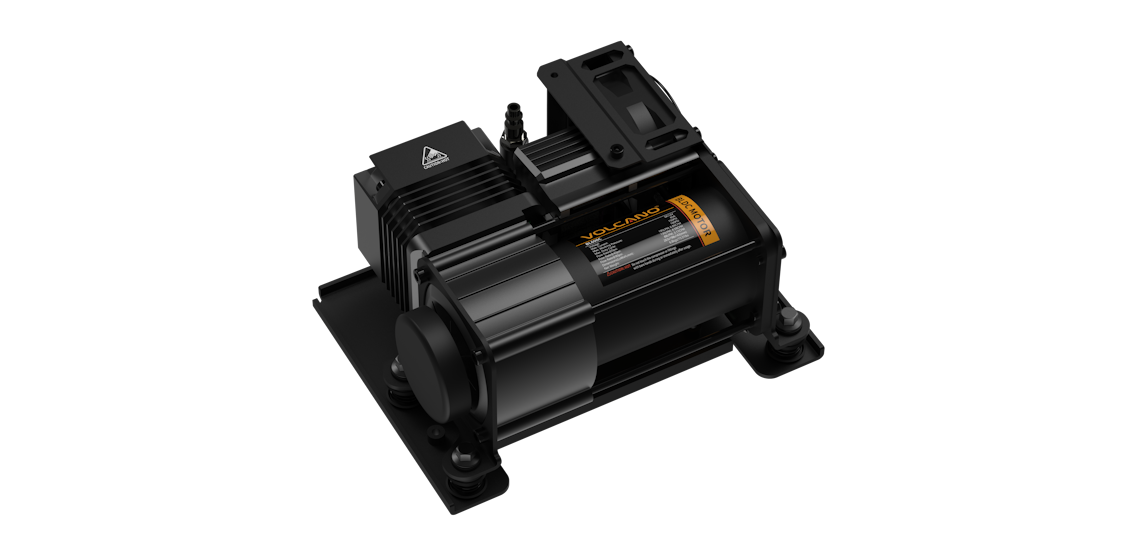

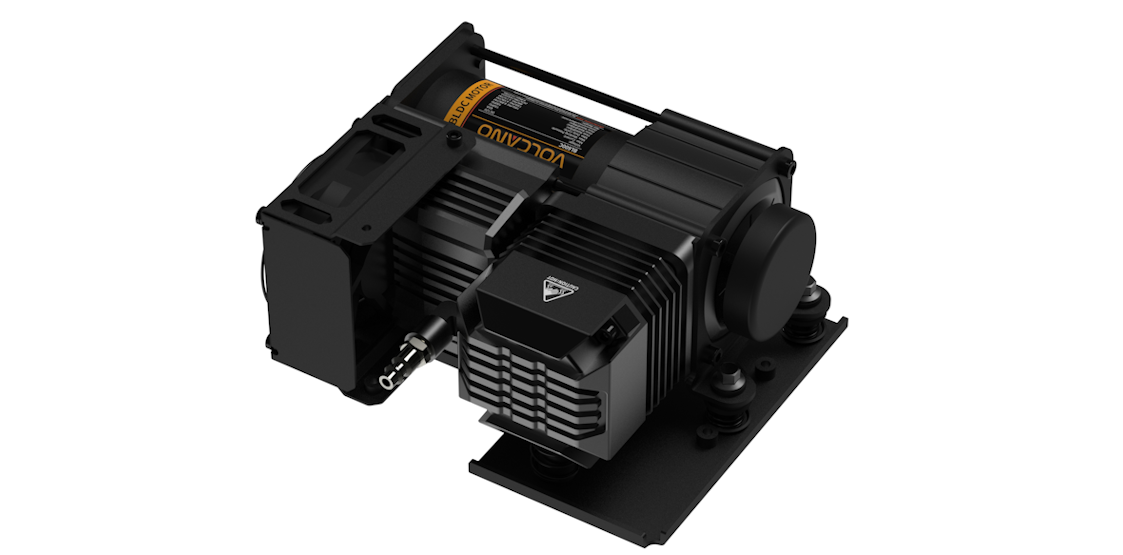

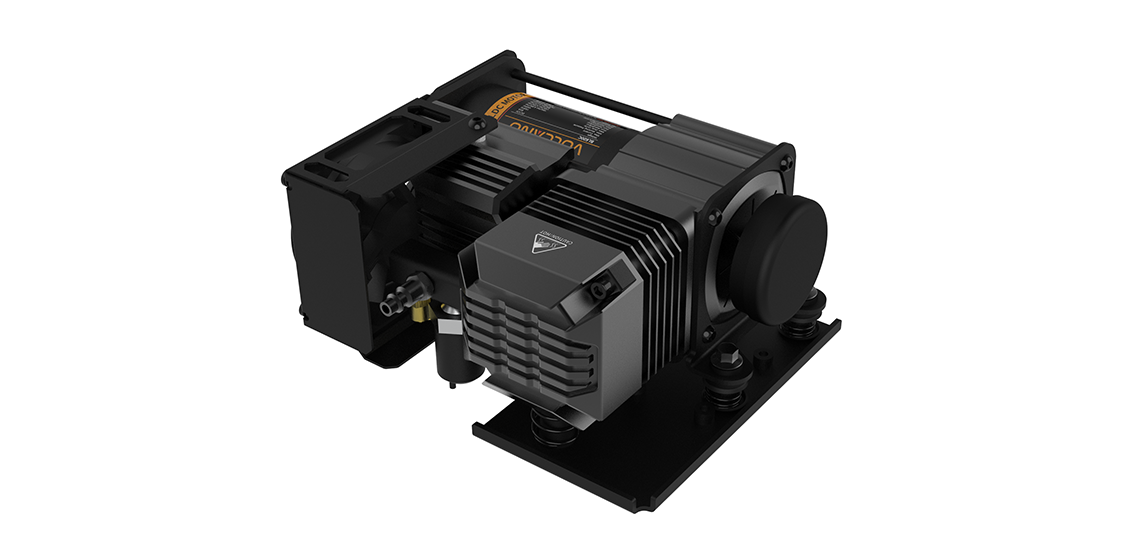

BL600C is a high-flow On-Board compressor with brushless DC motor. 1.195L/Min(6.89CFM). Max high air flow provides fast inflation experience. 2. Advanced brushless motor works efficiently, needs no maintenance, and lasts longer. 3. Special cooling design keeps the device from overheating. 4. Built-in safety feature that prevents overheating damage. 5. Quiet operation with minimal vibration. 6. Complete protection against dust and water when not in use (IP67 rated).

Specification
Specification
Model BL600C
Rated Voltage DC-12V
Max.Current 65A
Operation duration 100%@100PSI
Max.pressure 150PSI/10.3BAR/(10.5kg/㎠)
195x70xR14 tire inflation rate 37Sec.(0~30PSI)
265x60xR18 tire inflation rate 1Min.35Sec.(0~30PSI)
35"*12.5"*R15 tire inflation rate 2Min.32Sec.(0~30PSI)
35"*12.5"*R15 tire inflation rate 3Min.33Sec.(0~40PSI)
Noise ≦86dB

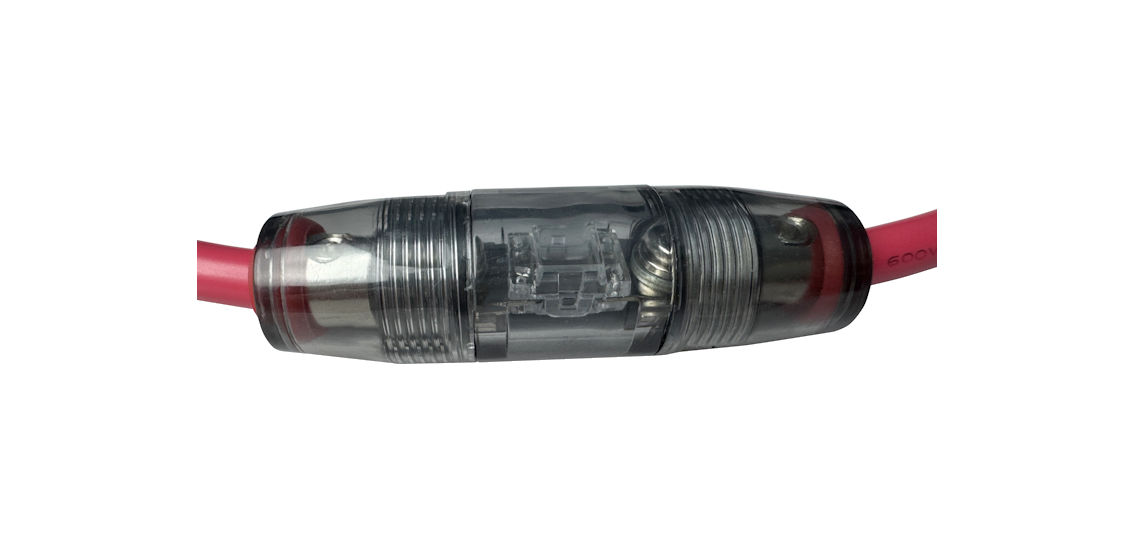

Fuse 80A
Dimension(LxWxH) 263x201x130(mm)

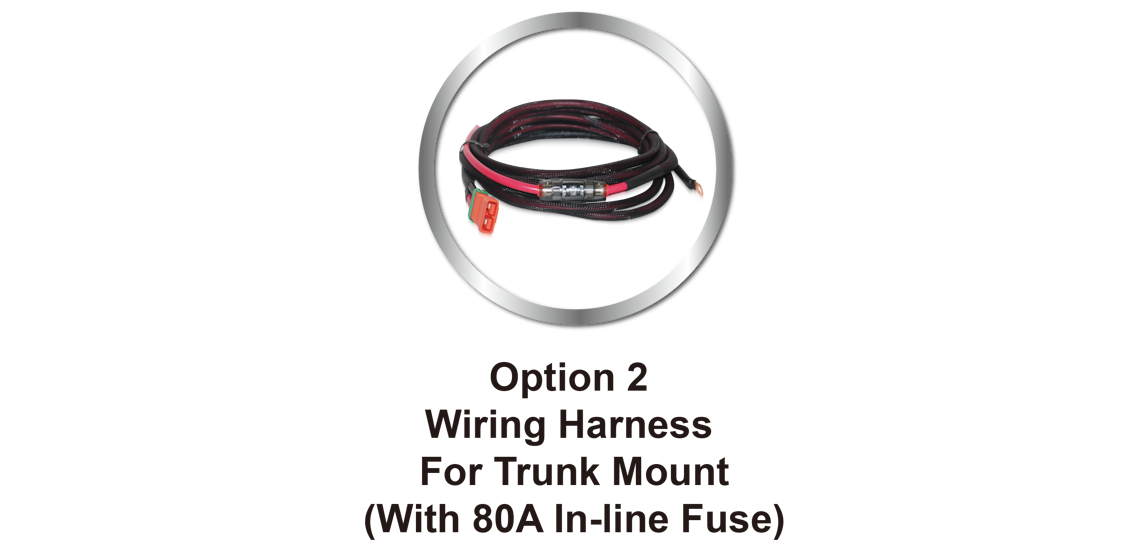

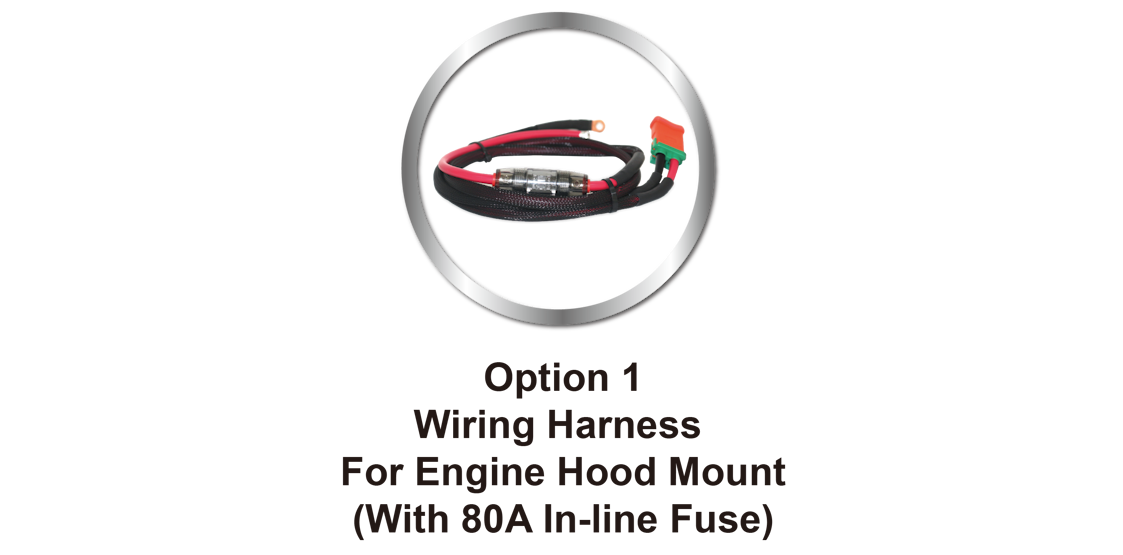

Power Cord length 1.5M/5M

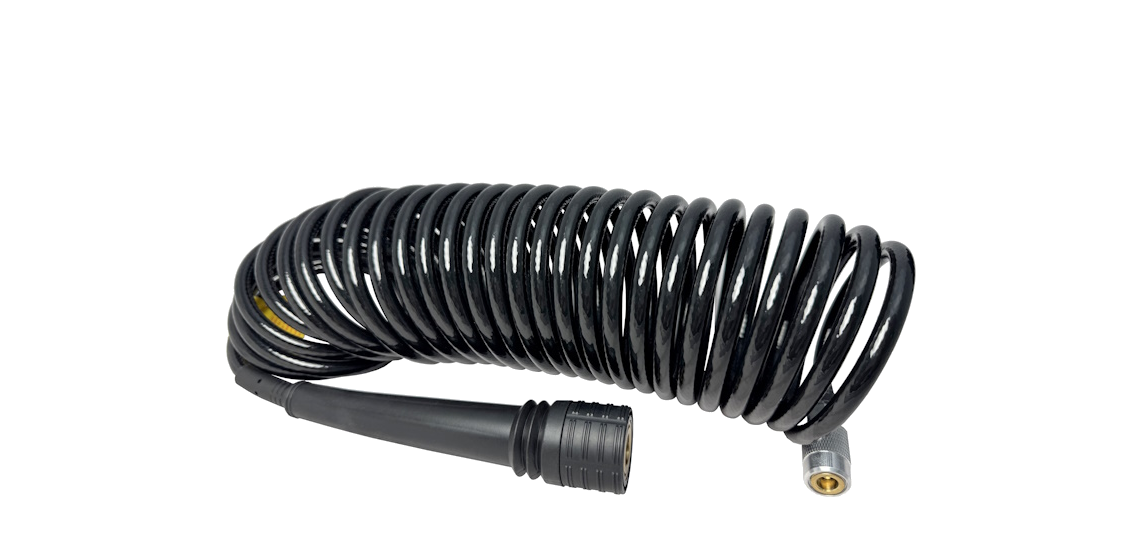

Air hose length 7.62M(25ft)
Weight 6.8Kg(15.0lbs)

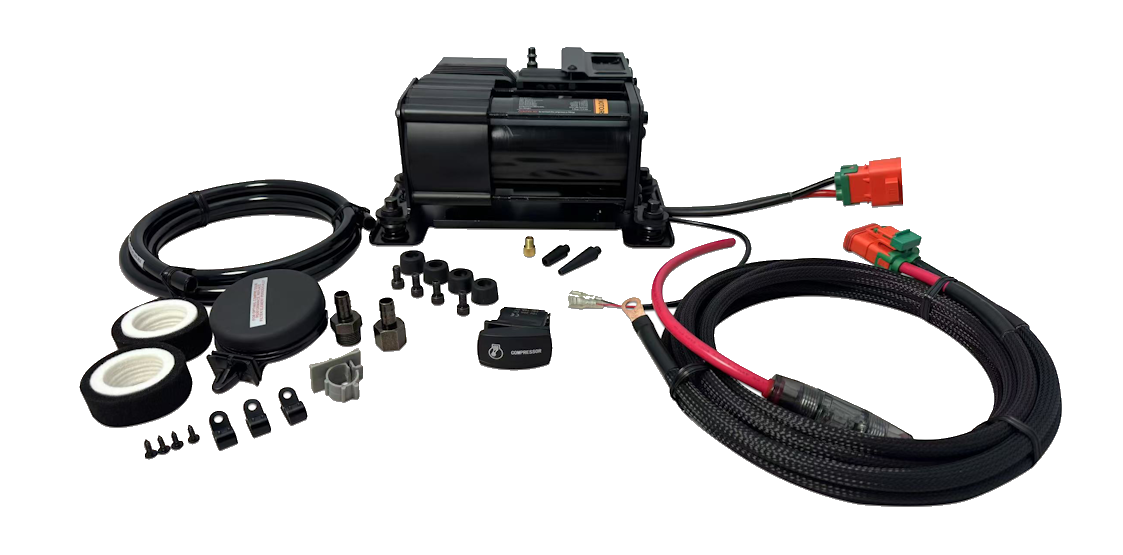

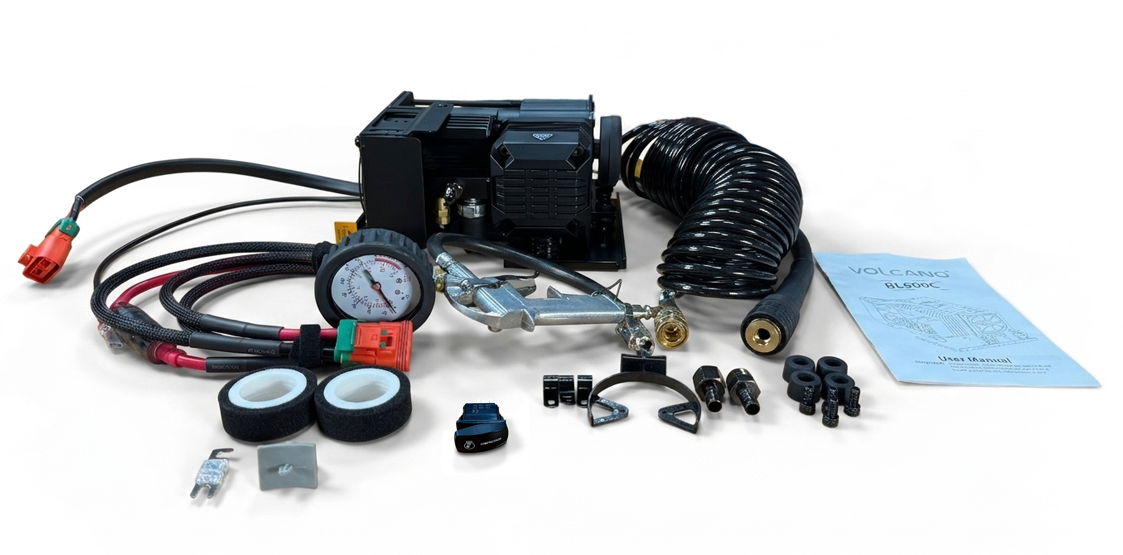

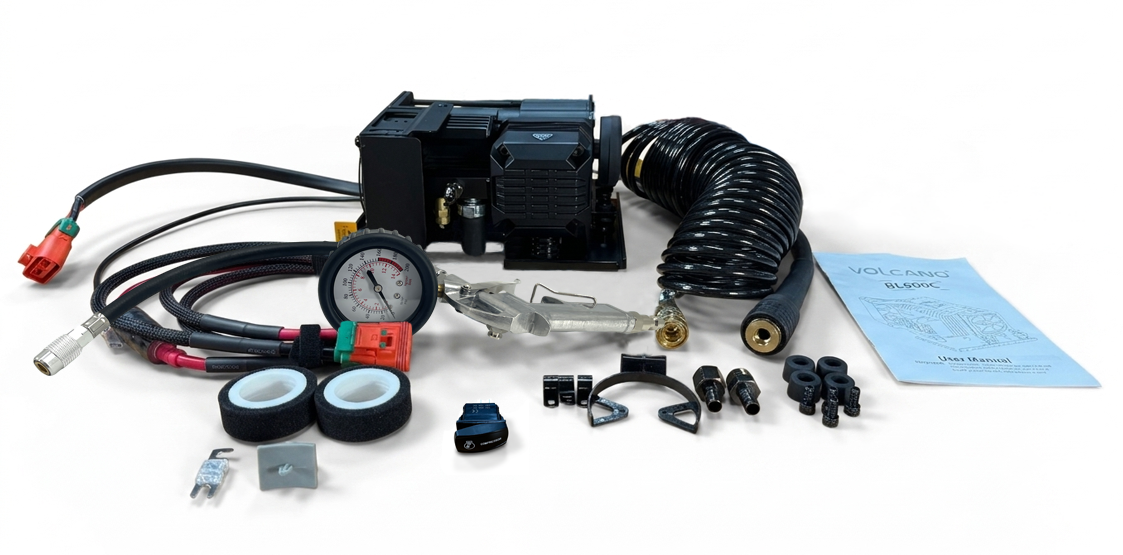

Accessories
Accessories Quantity

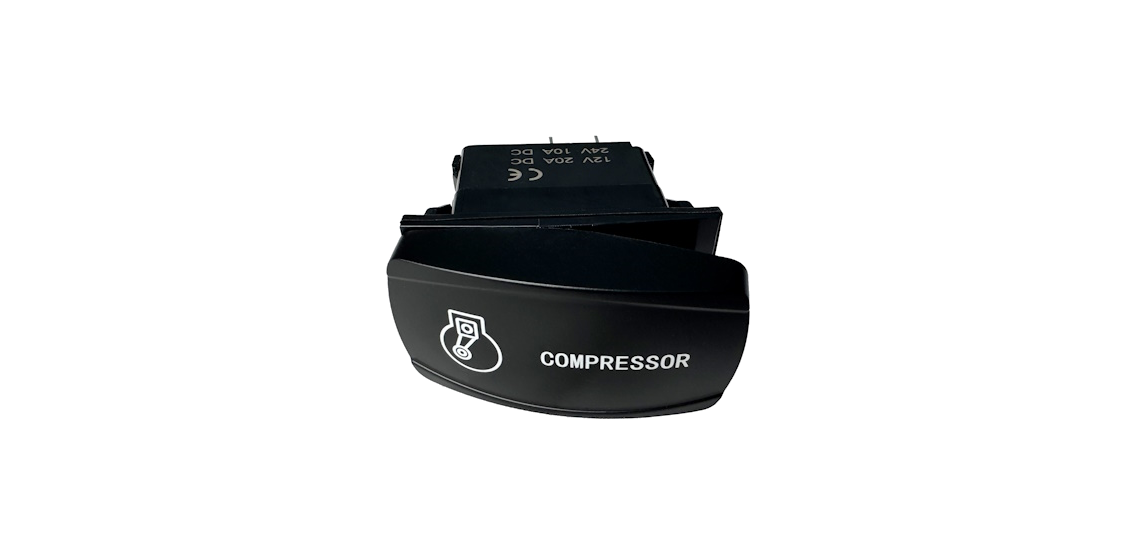

Start/Stop Rocker Switch 1 PCS
Filter 1 PCS, Included filter element
Filter elements 2 PCS
Connectors for the remote installation 2 PCS
Air hose for the remote installation 1 PCS
Fixed clip for Air hose-Remote Installation 1 PCS
Long Plastic Nozzle 1 PCS
Short Plastic Nozzle 1 PCS
Presta to schrader valve adapter 1 PCS
User Manual 1 PCS

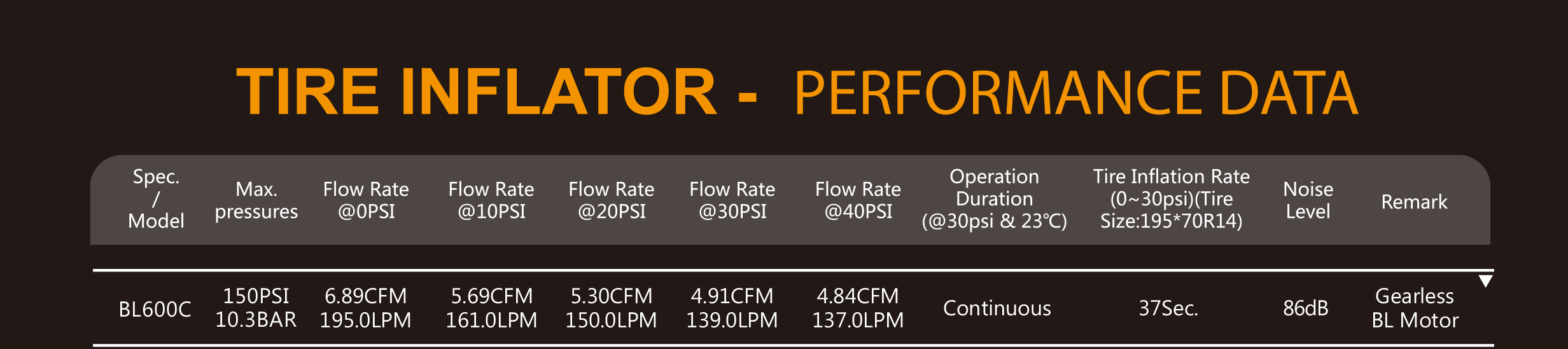

Performance data

Packing Information
Packing items Q'ty/Model
Standard packing 1 PCS/CTN
Net weight/carton 6.8kg
Gross weight/carton 7.9Kg
Carton size 44.5*29.3*23.7 cm
20' Container 1,024 PCS
40' Container 2,080 PCS
