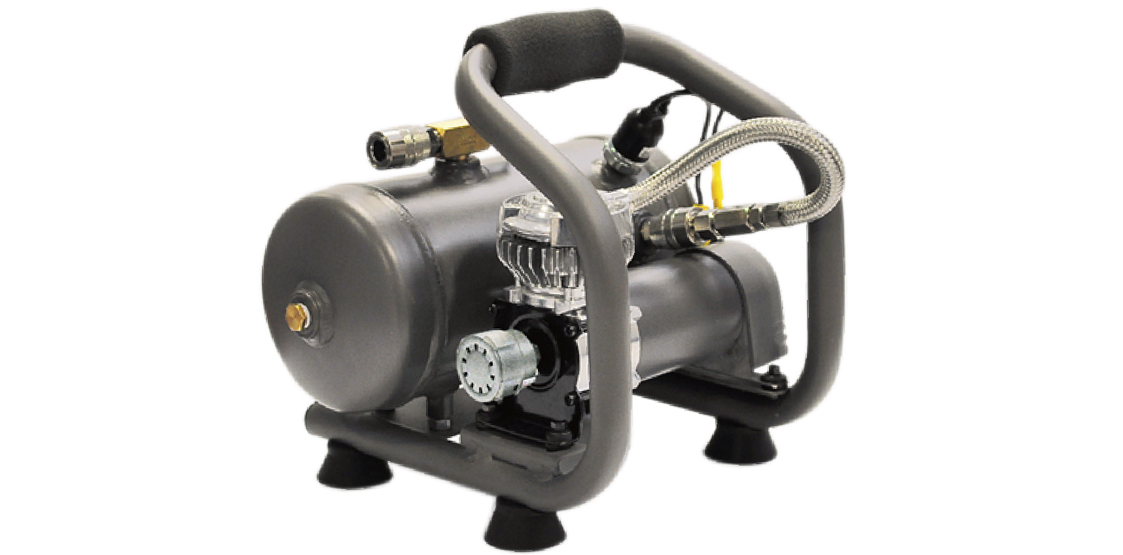

PM650
PM650 is the air compressor that with 2.65 liter air storage tank. Direct-drive mechanism design for less parts, less maintenance and lower noise. Automatic reset thermal overload protector. Dual battery clamps with inline fuse. High performance PTFE piston ring. Anodized aluminum alloy cylinder. Replaceable metal filter for dust resistance. Suitable for air tools, tire inflation, blow gum and air horn
| Items | Spec. |
| Housepower | 1/3HP |
| Air Tank | 3.75 Liter |
| Motor Type | Permanent Magnet |
| Voltage | DC 12V |
| Max. Current | 15A |
| Operation Duration | 20Min. |
| Max. Pressure | 105PSI (7.24BAR) |
| Pressure Switch | 85PSI (5.86BAR) on, 105PSI (7.24BAR) off |
| Flow Rate | 36L/Min.@0PSI |
| Noise | < 70dB |
| Dimension（L*W*H） | 295 x 265 x 270mm |
| Net Weight | 6.4kg |
| Accessories | Quantity |
| 2.5*160mm cable tie | 3 PC |
| Venturi tube | 1 PC |
Male quick coupling (1/4NPT female threaded) |
1 PC |
Male quick coupling (1/4NP male threaded) |
1 PC |
| Filter cartridge | 1 PC |
| Filter | 1 PC |
| Tire inflation gun | 1 PC |
| Air hose | 1 PC |
| Packing items | Q'ty / Model |
| Net weight | 6.4kg |
