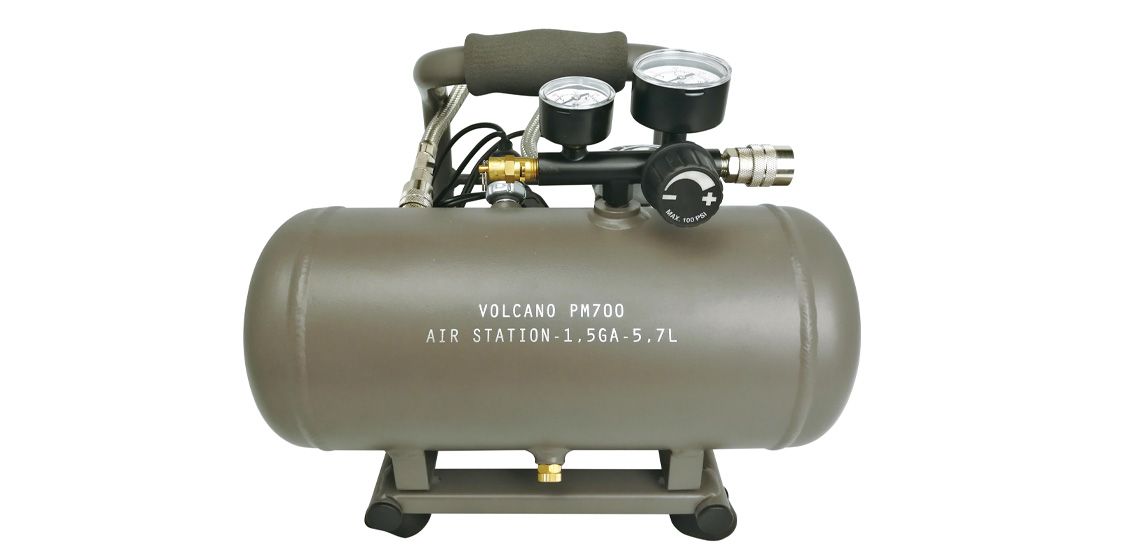

PM700

PM700 is the air compressor that with 5.7 liter air storage tank. Direct-drive mechanism design for less parts, less maintenance and lower noise. Automatic reset thermal overload protector. Dual battery clamps with inline fuse. High performance PTFE piston ring. Anodized aluminum alloy cylinder. Replaceable metal filter for dust resistance. Suitable for air tools, tire inflation, blow gum and air horn.

PM700
Specification
Items Spec.
Housepower 1/2HP
Air Tank 5.7 Liter
Motor Type Permanent Magnet
Voltage DC 12V
Max. Current 30A
Operation Duration 30Min.
Max. Pressure 105PSI (7.24BAR)
Pressure Switch 85PSI (5.86BAR) on,  105PSI (7.24BAR) off
Flow Rate 71L/Min.@0PSI
Noise  < 86dB
Dimension（L*W*H） 364*323*311.8mm

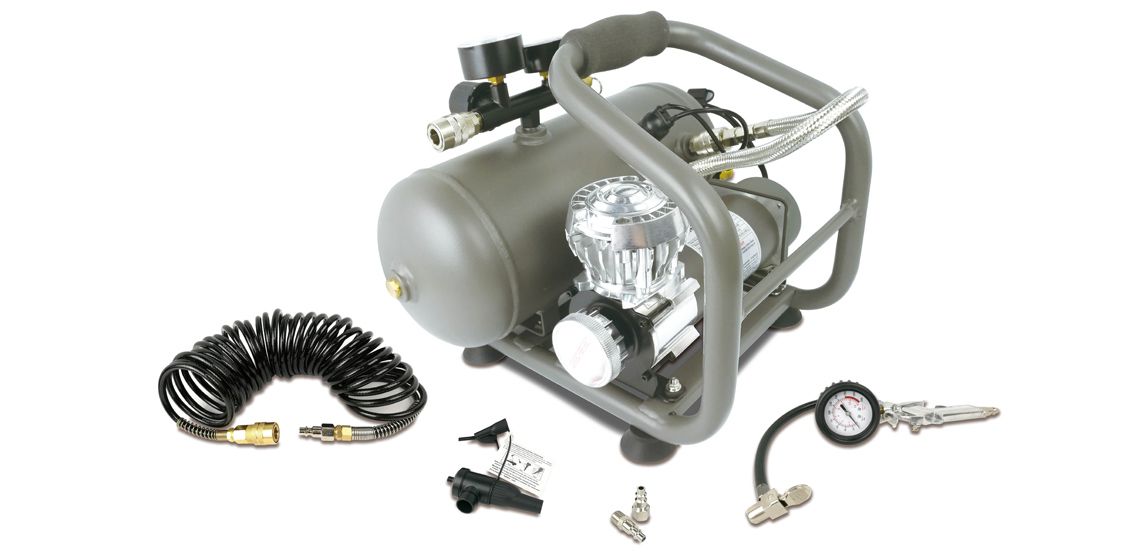

Accessories
Accessories Quantity
2.5*160mm cable tie 3 PC
Venturi tube 1 PC

Male quick coupling (1/4NPT female threaded)

 1 PC

Male quick coupling (1/4NP male threaded)

 1 PC
Filter cartridge 1 PC
Filter 1 PC
Tire inflation gun 1 PC
Air hose 1 PC
Packing Information
Packing items Q'ty / Model
Standard packing 1 PCS/CTN
Net weight/carton 10.6 kg
Carton size 48.5*37.2*34 cm
20' Container 420 PCS
40' Container 864 PCS
