LG500S

LG500S is the air compressor / tire inflator with new style precise linear pressure gauge,easy to read,with over-pressure protection. Pressure gauge comes with LED backlight,convenient for reading at night. Upgrade power cord,cigarette lighter plug with 15 A fuse. Highly efficient work light,easy for working at night. With inflation kit holder for neat storage. Built-in cooling fan with spiral air outlet,provide high efficient cooling to the motor, to ensure the deflate device can continuous wor

LG500S

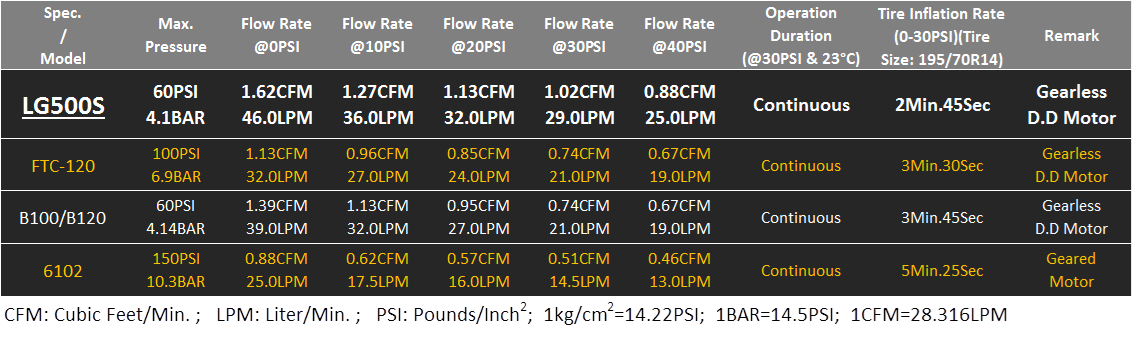

Performance data

Specification
Specifications Features
Rated Voltage: DC 12V Linear pressure gauge (easy to read)
Max. current: 12 A Blue-ray backlight for pressure gauge
Operation duration: Continuous High-efficiency heat dissipation design
Max. pressure: 60PSI (4.14BAR)
Continuous pressure relief for air hose
195/70R14 tire inflation rate: 2Min.45Sec (0～30PSI) LED lighting
Dimension(L*W*H): 220*90*146mm ----
Power cord / Air hose length: 3.1M / 1.2M ----
Accessories
Accessories Quantity
Inflation Needle 1 PC
Long Plastic Nozzle 1 PC
Short Plastic Nozzle 1 PC
Venturi  tube 1 PC
Packing Information
Packing items Q'ty / Model
Standard packing 8 PCS/CTN
Gross weight/carton 15.4 kg
Carton size 49.2*30.2*36.8 cm
20' Container 3,984 PCS
